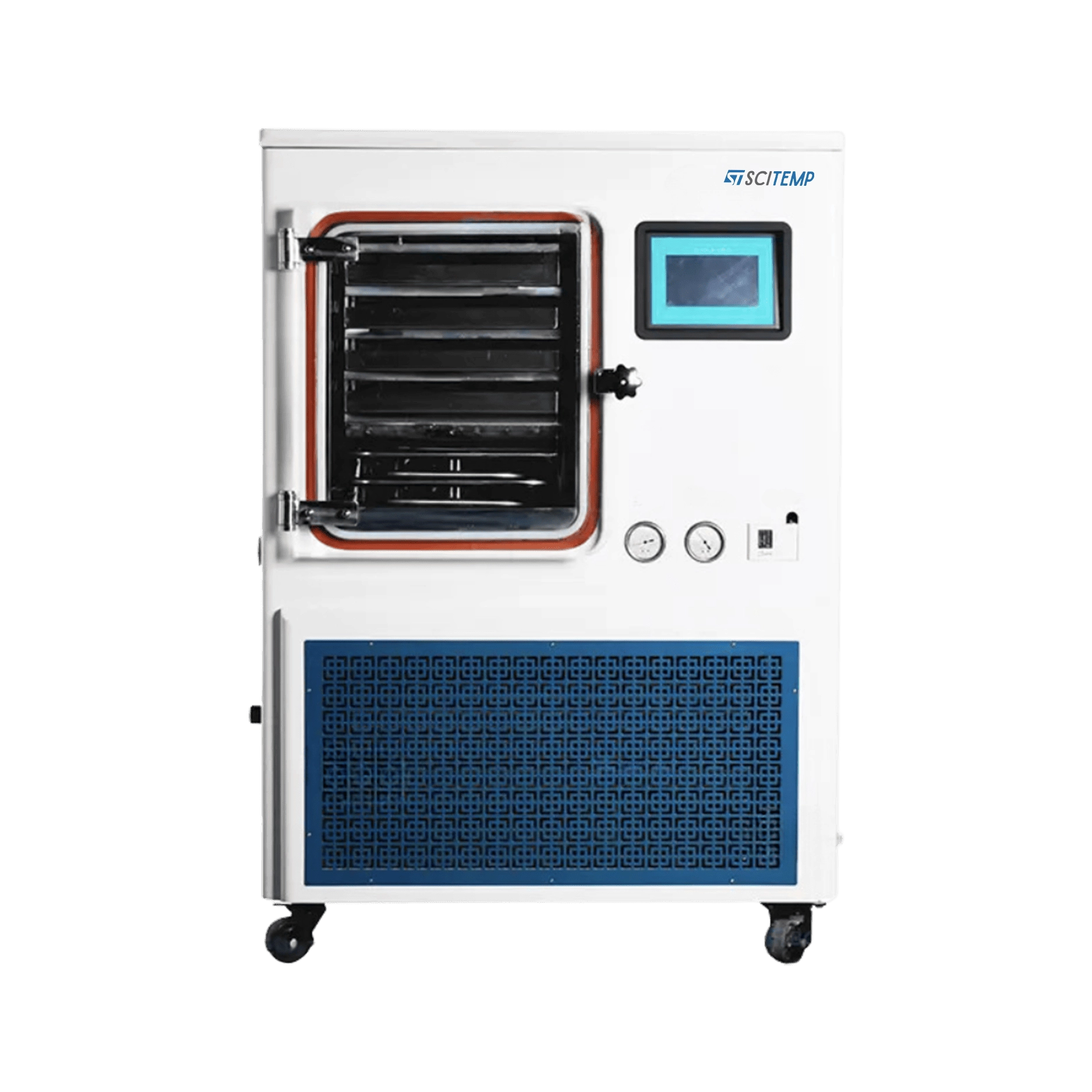

Pilot Freeze Dryer SPFD-A12 has a 0.6 m² freeze-drying area and processes 6 to 8 kg per batch efficiently. This freeze dryer features a high-temperature defrost mode for efficient thawing. Advanced gas diversion ensures uniform ice capture, while the transparent acrylic door allows full process visibility. Our pilot freeze dryer offers both manual control for testing and automatic control for production. Its pre-freezing and drying in one chamber make operation simple and efficient.
| Type | Silicone oil |
| Freeze drying area | 0.6 ㎡ |
| Processing Capacity | 6 to 8 kg/batch |
| Extraction rate | 8 L/S |
| Cold trap temperature | -75℃ |
| Partition temperature | -50℃ to -70℃ |
| Material tray spacing | 70 mm |
| Material tray number | 4 pcs |
| Material tray size | 355 × 475 × 35 mm |
| Defrost mode | High temperature defrosting |
| Vacuum value | Below 10 Pa |
| Water harvesting ability | 8 Kg/24h |
| Machine Power | 4500 W |
| Power supply | 220V/50Hz |
| Packaging Dimension | 1090 × 935 × 1570 mm |
| Dimension | 960 × 785 × 1450 mm |
| Net weight | 447 Kg |
| Gross weight | 491 Kg |
7-inch LCD touchscreen
FD pilot system
Powerful compressor
Sensor calibration
Low noise
Aeration valve
Alarms
Pilot Freeze Dryer SPFD-A12 is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields.
