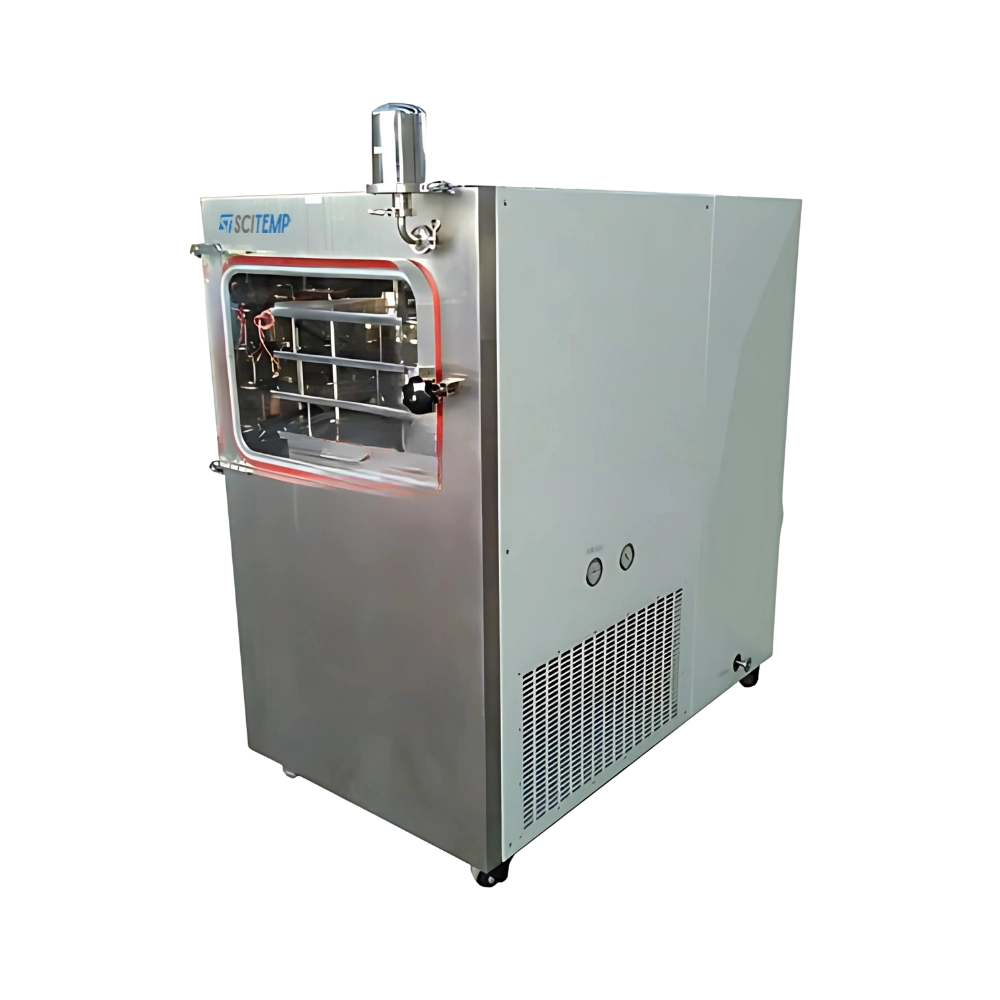

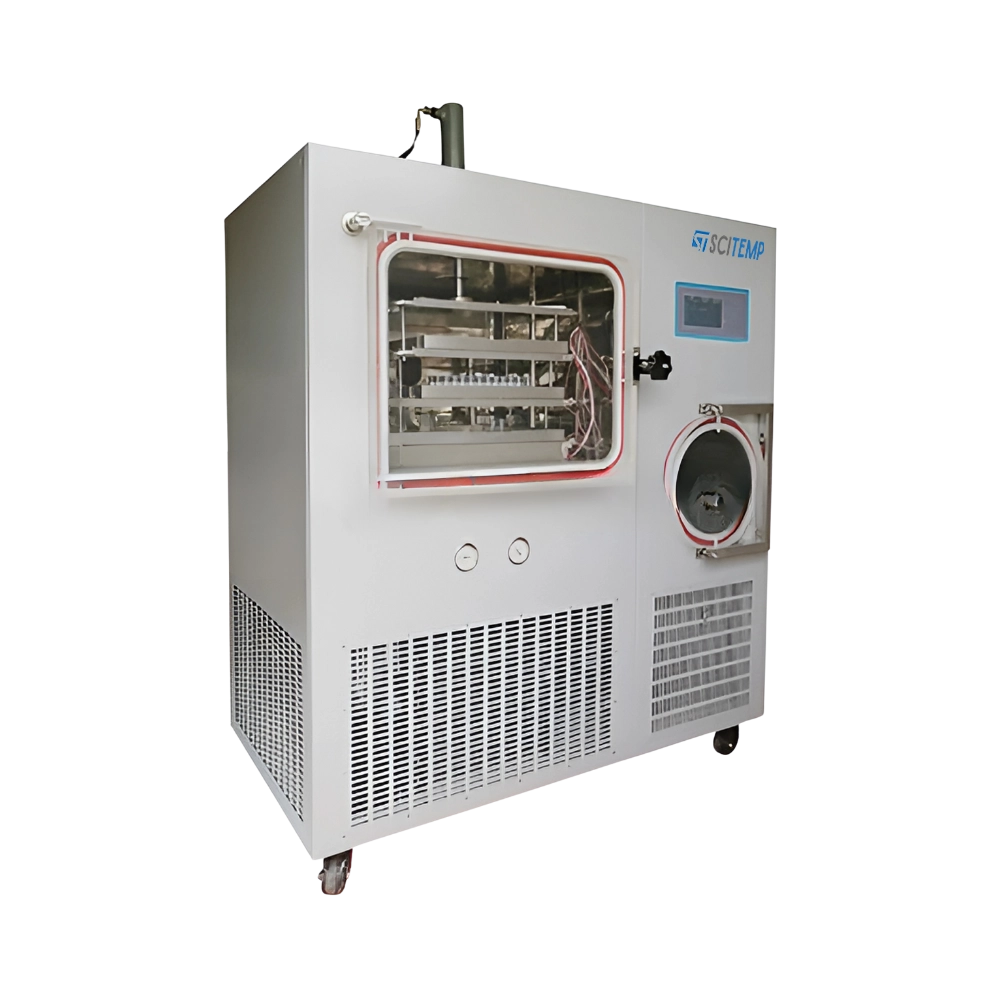

Pilot Freeze Dryer SPFD-C19 is a hydraulic top-press model with a 0.5 m² drying area and 5 L bulk capacity, operating on a three-phase power supply. Our pilot freeze dryer features a transparent acrylic door for full visibility of the freeze-drying process. A colour LCD touchscreen displays freeze-drying curves and automatically records process data. Both pre-freezing and drying are fully automated, with slope-controlled heating and cooling for stable shelf temperature. It is used for pharmaceutical, chemical, and food industries.
| Drying Area | 0.5 ㎡ |
| Shelf | 3 plus 1 Layer (top shelf for heat radiation) |
| Shelf Spacing | 100 mm |
| Shelf Size | 410 × 410 × 20 mm |
| Bulk Capacity | 5 L (10 mm thickness) |
| Condenser Capacity | 10 kg/batch |
| Shelf Temperature Range | -50 to +70℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Temperature | Min to More than -70℃ |
| Cooling | More than 25℃ |
| Vial Capacity Φ12 mm | 3705 pcs |
| Vial Capacity Φ16 mm | 2058 pcs |
| Vial Capacity Φ22 mm | 1050 pcs |
| Electric Defrosting | Available |
| Style Of Press | Hydraulic |
| Power Supply | 380V/50Hz, three phase |
| Dimension | 1165 × 1310 × 1950 mm |
| Weight | 860 Kg |
Pilot Freeze Dryer SPFD-C19 is extensively used across various industries, including pharmaceutical, biotech, food and beverage, cosmetics, chemicals and research labs.
• Exhaust filter for pump
• Air inlet filter for pump
• Anti oil return valve for pump
• Vacuum degree adjustment
• Eutectic point test
• Tray
• 8 manifold ports with flasks
• PC and Software
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Drying Area 0.3 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 70 mm
Shelf Size 300 × 340 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.5 ㎡
Extraction rate 5 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.04 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 200 L
Freeze drying area 2.25 ㎡
Extraction rate 22 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.4 ㎡
Processing Capacity 4 to 6 kg/batch
Extraction rate 6 L/S
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.306 ㎡
Extraction rate 3 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.3 ㎡
Processing Capacity 3 to 5 kg/batch
Extraction rate 4 L/S
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.6 ㎡
Processing Capacity 6 to 8 kg/batch
Extraction rate 8 L/S
Pilot Freeze Dryer
Drying Area 0.7 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 360 × 480 × 15 mm
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.152 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Freeze drying area 0.2 ㎡
Shelf size 400 × 270 mm
Shelf 2 plus 1 Layer (top shelf for heat radiation)
Shelf spacing 70 mm
It uses slope-controlled heating and cooling to maintain a stable shelf temperature throughout the process. This system helps prevent sudden changes in temperature, ensuring more accurate and uniform freeze-drying results, especially important for sensitive products.
It operates with a CFC-free refrigerant, making it an environmentally friendly choice. It is also equipped with an energy-efficient compressor to minimize power consumption and lower operational costs while delivering excellent freeze-drying performance.
It requires a 380V/50Hz three-phase power supply. It has dimensions of 1165 × 1310 × 1950 mm and weighs 860 kg, meaning it is sturdy but still compact enough to fit into pilot plants, laboratories, or small production areas.
It is used in a wide range of industries including pharmaceuticals, biotechnology, food and beverage, cosmetics, chemical manufacturing, and research laboratories. Its advanced features make it ideal for precise and reliable freeze-drying applications across different sectors.
It speeds up and stabilizes the freeze-drying process by automating both pre-freezing and drying on the shelves. Features like slope-controlled temperature changes, real-time monitoring, data recording, and USB export help ensure consistent, high-quality end products while reducing process time and manual intervention.
