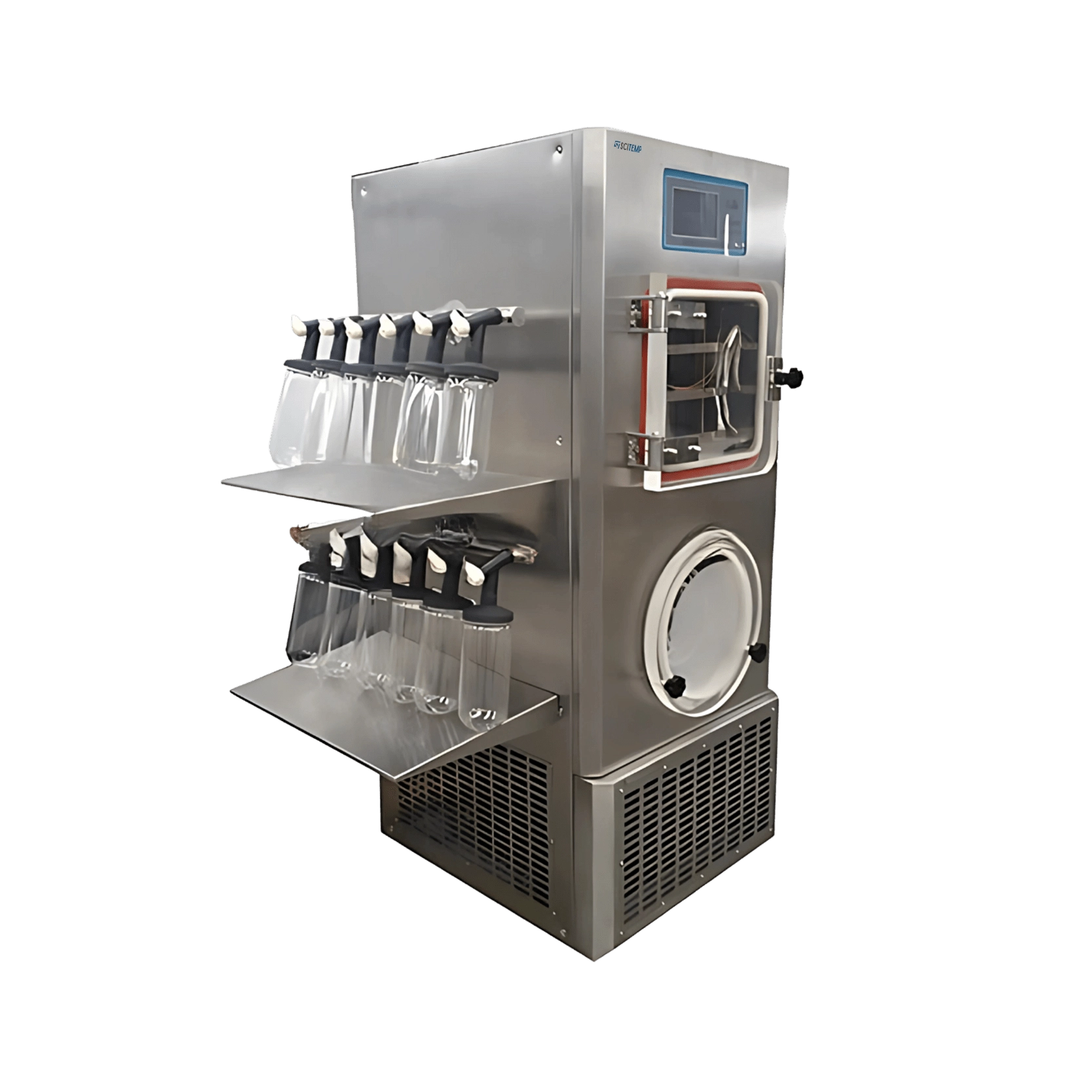

Pilot Freeze Dryer SPFD-C14 has a 0.3 m² drying area and 3 L bulk capacity, it features a PLC control system and low-noise, high-efficiency compressor for precise, uniform drying. An LCD displays freeze-drying curves, with stable shelf temperature control and accurate sensor calibration. Safety is enhanced with a multi-level password system, real-time alarm, and historical log. A USB port allows easy data export. Our pilot freeze dryers are used for pharmaceutical, chemical, and food industries.
| Drying Area | 0.3 ㎡ |
| Shelf Size | 400 × 270 mm |
| Shelf | 3 plus 1 layer (top shelf for heat radiation) |
| Shelf Spacing | 70 mm |
| Tray Size | 395 × 265 mm |
| Tray Number | 3 pcs |
| Condenser Temperature | -70℃ |
| Shelf Temperature Range | -50 to +70℃ |
| Bulk Capacity | 3 L (10 mm thickness) |
| Vacuum Pump Flow Rate | 4 L/S |
| Condenser Capacity | 6kg /24 h |
| Cooling | More than 25℃ |
| Vacuum Degree | Above 10 Pa |
| Vial Capacity Φ12 mm | 2187 pcs |
| Vial Capacity Φ16 mm | 1200 pcs |
| Vial Capacity Φ 22 mm | 654 pcs |
| Voltage | 220V/50 Hz, 110V/60Hz, 120V/60Hz |
| Defrosting | Electric Defrosting |
| Power Supply | 3000 W |
| Dimension | 770 × 750 × 1520 mm |
| Weight | 330 Kg |
Pilot Freeze Dryer SPFD-C14 is extensively used across various industries, including pharmaceutical and biotech, food and beverage, cosmetic industry, chemical and material sciences.
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.3 ㎡
Processing Capacity 3 to 5 kg/batch
Extraction rate 4 L/S
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.5 ㎡
Extraction rate 5 L
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Drying Area 1.0 ㎡
Shelf 6 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 360 mm
Shelf Size 360 × 480 ×15 mm
Pilot Freeze Dryer
Drying Area 0.3 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 70 mm
Shelf Size 300 × 340 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 1 ㎡
Processing Capacity 10 to 15 kg/batch
Extraction rate 16 L/S
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.69 ㎡
Extraction rate 7 L
Pilot Freeze Dryer
Drying Area 0.5 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 410 × 410 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.4 ㎡
Extraction rate 4 L
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 200 L
Freeze drying area 2.25 ㎡
Extraction rate 22 L
Pilot Freeze Dryer
Drying Area 0.7 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 360 × 480 × 15 mm
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.306 ㎡
Extraction rate 3 L
This is equipped with a PLC control system, stable shelf temperature regulation, and accurate sensor calibration, all of which ensure uniform and precise drying results. Its slope-controlled heating, real-time temperature monitoring, and consistent vacuum levels make it highly suitable for processing sensitive products that require careful moisture removal.
It features an LCD screen that clearly displays freeze-drying curves and system status in real time. Additionally, it includes a USB port for convenient data export, allowing users to store, share, or analyse process data externally for reporting or research purposes.
It is used for freeze-drying (lyophilization), a process that removes moisture from products under vacuum to preserve their structure, stability, and shelf life. It is widely used in the pharmaceutical, food, cosmetic, chemical, biotechnology, and material science industries. This model is ideal for research labs, pilot production, and product development, where precise drying and small-batch control are essential.
It supports multiple vial sizes per batch, including up to 2,187 vials (?12 mm), 1,200 vials (?16 mm), or 654 vials (?22 mm). This flexibility allows users to run different sample sizes or adjust batch configurations based on their specific product and process needs.
The condenser in it reaches temperatures as low as -70°C and is engineered for uniform ice capture, ensuring effective moisture collection from the drying chamber. This leads to better performance and reduced processing time, especially for moisture-rich samples.
