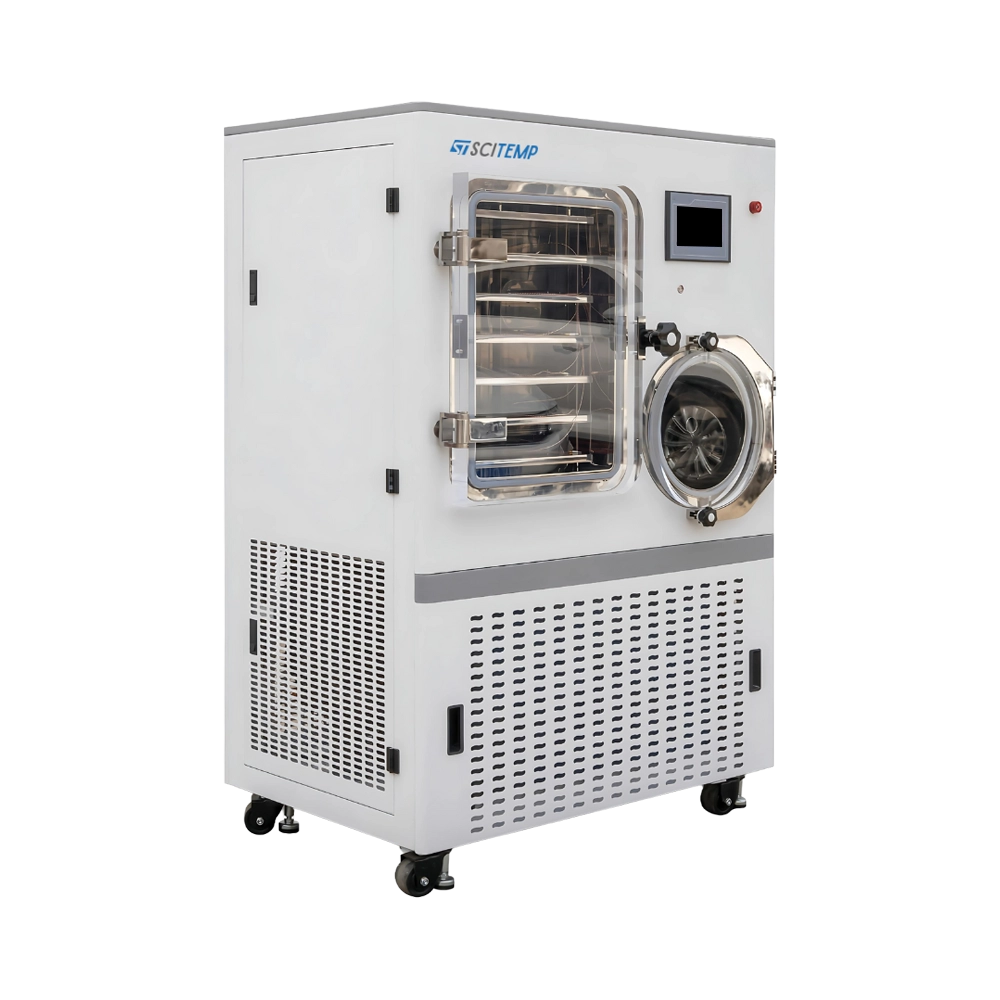

Pilot Freeze Dryer SPFD-B15 has a 100L capacity with a 1.04m² drying area. With a 10L extraction rate, it ensures fast and efficient moisture removal for effective freeze-drying. The heating shelf allows freezing and drying in one place for smooth operation. Its stainless-steel chamber and trays ensure durability, corrosion resistance, and easy cleaning. A standard PID control ensures precise temperature and process regulation.
| Type | Silicone oil |
| Capacity | 100 L |
| Freeze drying area | 1.04 ㎡ |
| Extraction rate | 10 L |
| Condenser temperature | -75℃ |
| Shelf number | 6+1 |
| Shelf size | 480 × 360 mm |
| Cooling mode | Air cooling, ventilation, room temperature 25℃ or less |
| Vacuum value | Below 5 Pa |
| Water harvesting ability | More than 15 Kg/24h |
| Vials loading numbers | Φ12mm: 7014 |
| Machine Power | 6500 W |
| Packaging Dimension | 911 × 1405 × 1983 mm |
| Dimension | 911 × 1405 × 1983 mm |
| Net weight | 800 Kg |
| Gross weight | 850 Kg |
LCD touchscreen
Low noise
Alarms
PID controller
Pilot Freeze Dryer SPFD-B15 is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields.
Vacuum pump
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Drying Area 1.152 m²
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 480 × 600 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.6 ㎡
Processing Capacity 6 to 8 kg/batch
Extraction rate 8 L/S
Pilot Freeze Dryer
Drying Area 0.7 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 360 × 480 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.3 ㎡
Processing Capacity 3 to 5 kg/batch
Extraction rate 4 L/S
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.152 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 20L
Freeze drying area 0.2 ㎡
Extraction rate 2L
Pilot Freeze Dryer
Drying Area 0.5 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 410 × 410 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.5 ㎡
Extraction rate 5 L
Pilot Freeze Dryer
Drying Area 0.3 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 70 mm
Shelf Size 300 × 340 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 200 L
Freeze drying area 2.25 ㎡
Extraction rate 22 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 1 ㎡
Processing Capacity 10 to 15 kg/batch
Extraction rate 16 L/S
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.4 ㎡
Extraction rate 4 L
Pilot Freeze Dryer
Freeze drying area 0.2 ㎡
Shelf size 400 × 270 mm
Shelf 2 plus 1 Layer (top shelf for heat radiation)
Shelf spacing 70 mm
