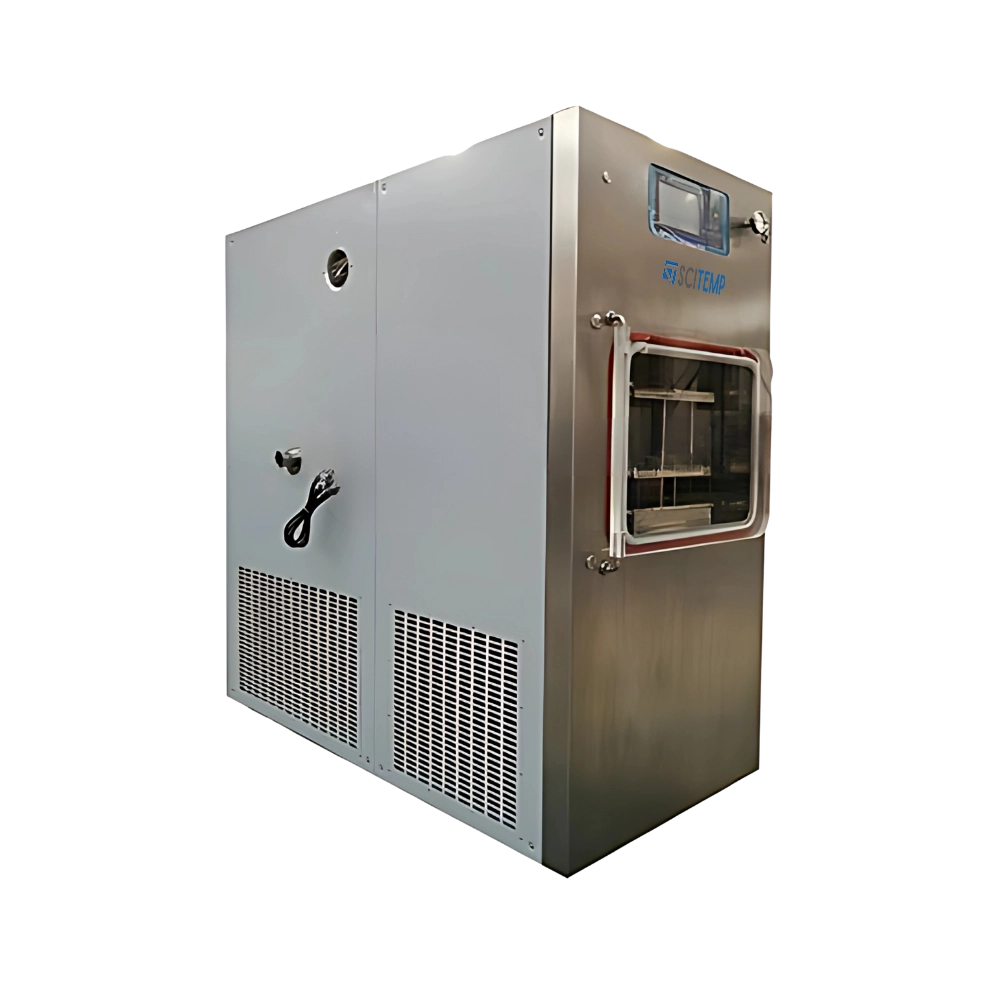

Pilot Freeze Dryer SPFD-C17 has a hydraulic top-press model with a 0.3 m² drying area and 3 L bulk capacity. It features CFC-free refrigerant and a high-efficiency compressor. All key components are made from stainless steel 304 for durability and easy cleaning. Pre-freezing and drying occur directly on the shelf. A control system with a colour LCD touch screen ensures stable operation and displays process data and history. Our pilot freeze dryers are used in the pharmaceutical, chemical, and food industries.
| Drying Area | 0.3 ㎡ |
| Shelf | 3 plus 1 Layer (top shelf for heat radiation) |
| Shelf Spacing | 70 mm |
| Shelf Size | 300 × 340 × 20 mm |
| Bulk Capacity | 3 L (10 mm thickness) |
| Condenser Capacity | 6 kg/batch |
| Shelf Temperature Range | -50 to +70℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Temperature | Min to More than -70℃ |
| Cooling | More than 25℃ |
| Vial Capacity Φ12mm | 2187 pcs |
| Vial Capacity Φ16 mm | 1200 pcs |
| Vial Capacity Φ 22 mm | 654 pcs |
| Electric Defrosting | Available |
| Style Of Press | Hydraulic |
| Power Supply | 220V/50Hz, single phase |
| Dimension | 1230 × 830 × 1600 mm |
| Weight | 560 Kg |
Pilot Freeze Dryer SPFD-C17 is extensively used across various industries, including pharmaceutical, biotech, food and beverage, cosmetics, chemicals and research labs.
• Exhaust filter for pump
• Air inlet filter for pump
• Anti oil return valve for pump
• Vacuum degree adjustment
• Eutectic point test
• Tray
• 8 manifold ports with flasks
• PC and Software
Pilot Freeze Dryer
Drying Area 1.152 m²
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 480 × 600 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 200 L
Freeze drying area 2.25 ㎡
Extraction rate 22 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.04 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Drying Area 0.3 ㎡
Shelf Size 400 × 270 mm
Shelf 3 plus 1 layer (top shelf for heat radiation)
Shelf Spacing 70 mm
Pilot Freeze Dryer
Freeze drying area 0.2 ㎡
Shelf size 400 × 270 mm
Shelf 2 plus 1 Layer (top shelf for heat radiation)
Shelf spacing 70 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.6 ㎡
Processing Capacity 6 to 8 kg/batch
Extraction rate 8 L/S
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.4 ㎡
Extraction rate 4 L
Pilot Freeze Dryer
Drying Area 0.5 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 410 × 410 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 1 ㎡
Processing Capacity 10 to 15 kg/batch
Extraction rate 16 L/S
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.306 ㎡
Extraction rate 3 L
Pilot Freeze Dryer
Drying Area 0.7 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 360 × 480 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.5 ㎡
Extraction rate 5 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.3 ㎡
Processing Capacity 3 to 5 kg/batch
Extraction rate 4 L/S
This Pilot Freeze Dryer is widely used in industries such as pharmaceuticals, biotechnology, food and beverage, cosmetics, chemicals, and research laboratories. It is designed to meet the high standards required for sensitive drying processes in these fields, ensuring product stability, quality, and shelf life.
It provides a uniform drying effect by using a high-efficiency shelf system where both pre-freezing and drying happen directly on the shelves. The shelves maintain consistent temperatures across their surfaces, and the transparent acrylic door allows operators to visually monitor the process.
It uses a PLC control system combined with a colour LCD touch screen. Operators can easily monitor real-time data, access historical records, and manage process settings. Additionally, the system features a multilevel password protection setup to ensure operational safety and data integrity.
The shelves in the pilot freeze dryer can operate between -50? to +70?, allowing for flexible drying protocols. The condenser can achieve temperatures as low as -70?, which efficiently traps and condenses water vapor during the drying process, ensuring high vacuum performance and product protection.
It includes a USB port for easy data export. Users can save detailed process histories and operational records, allowing for convenient review, analysis, and documentation of production batches. This feature supports quality assurance protocols.
