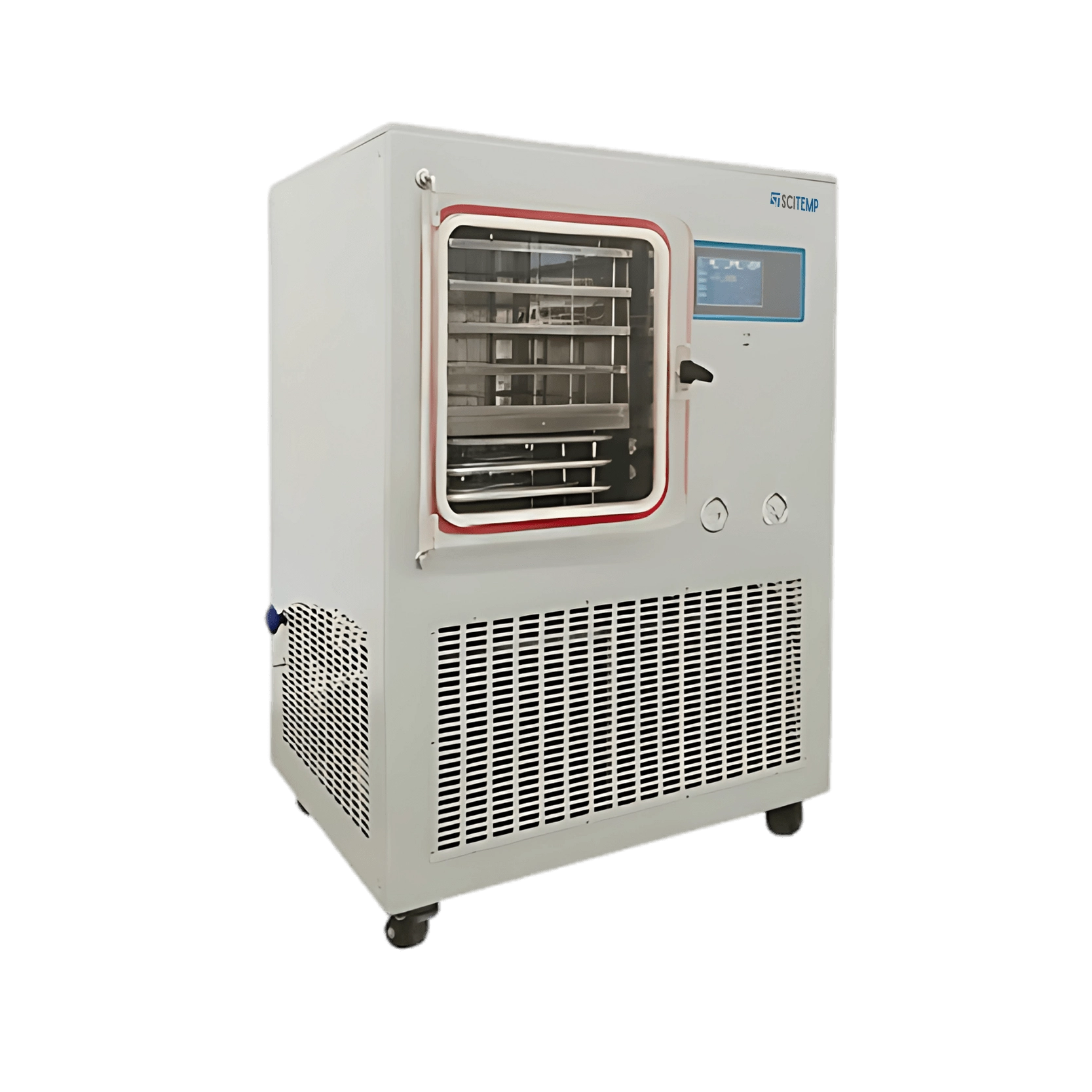

Pilot Freeze Dryer SPFD-C18 has a 0.7 m² drying area and 7 L bulk capacity. Our pilot freeze dryer features with high-efficiency, low-noise compressor, sensor calibration ensures accuracy, and up to 36-step recipes can be stored for flexible use. Shelf heating speeds up drying and safety system controls shelf heating rate. The PLC control system keeps shelf temperatures stable. It is used in pharma, chemical, and food industries.
| Drying Area | 0.7 ㎡ |
| Shelf | 4 plus 1 Layer (top shelf for heat radiation) |
| Shelf Spacing | 50 mm |
| Shelf Size | 360 × 480 × 15 mm |
| Bulk Capacity | 7 L (10 mm thickness) |
| Condenser Capacity | 10 kg/batch |
| Shelf Temperature Range | -50 to +70℃ |
| Vacuum Degree | Above 10 Pa |
| Cooling | More than 25℃ |
| Vial Capacity Φ12 mm | 4676 pcs |
| Vial Capacity Φ16 mm | 2772 pcs |
| Vial Capacity Φ22 mm | 1440 pcs |
| Power Supply | 380V/50Hz, three phase |
| Dimension | 960 × 785 × 1450 mm |
| Weight | 500 Kg |
Pilot Freeze Dryer SPFD-C18 is extensively used across various industries, including pharmaceutical, biotech, food and beverage, cosmetics, chemicals and research labs.
• Exhaust filter for pump
• Air inlet filter for pump
• Anti oil return valve for pump
• Vacuum degree adjustment
• Eutectic point test
• Tray
• 8 manifold ports with flasks
• PC and Software
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.306 ㎡
Extraction rate 3 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.4 ㎡
Processing Capacity 4 to 6 kg/batch
Extraction rate 6 L/S
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.5 ㎡
Extraction rate 5 L
Pilot Freeze Dryer
Drying Area 0.5 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 410 × 410 × 20 mm
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.69 ㎡
Extraction rate 7 L
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 200 L
Freeze drying area 2.25 ㎡
Extraction rate 22 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 1 ㎡
Processing Capacity 10 to 15 kg/batch
Extraction rate 16 L/S
Pilot Freeze Dryer
Drying Area 1.0 ㎡
Shelf 6 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 360 mm
Shelf Size 360 × 480 ×15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.152 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.3 ㎡
Processing Capacity 3 to 5 kg/batch
Extraction rate 4 L/S
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.04 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 20L
Freeze drying area 0.2 ㎡
Extraction rate 2L
It is designed with operator convenience. It includes a multilevel password protection system, a transparent acrylic viewing door, real-time alarm notifications, and the ability to store up to 36-step drying recipes, allowing for fast setup and consistent batch processing.
It offers a drying area of 0.7 square meters and a bulk product capacity of 7 Liters with four shelves plus one additional top shelf for heat radiation, it is ideal for handling larger batches efficiently.
It is constructed with stainless steel 304, which is corrosion-resistant, durable, and easy to clean. This ensures a long service life, maintains hygiene standards, and minimizes maintenance needs, especially important in pharmaceutical, food, and chemical environments.
With features like shelf heating, controlled temperature stability, recipe programming, and a high-capacity condenser, it greatly speeds up the freeze-drying cycle while maintaining the integrity and quality of sensitive products. It ensures that end products retain their structure, activity, and shelf life, which is crucial for pharmaceutical, biotech, and food applications.
It is widely used in industries like pharmaceuticals, biotechnology, food and beverage, cosmetics, chemical production, and research laboratories. It is designed to handle the strict demands of product development, pilot production, and small-scale manufacturing where quality and precision are critical.
