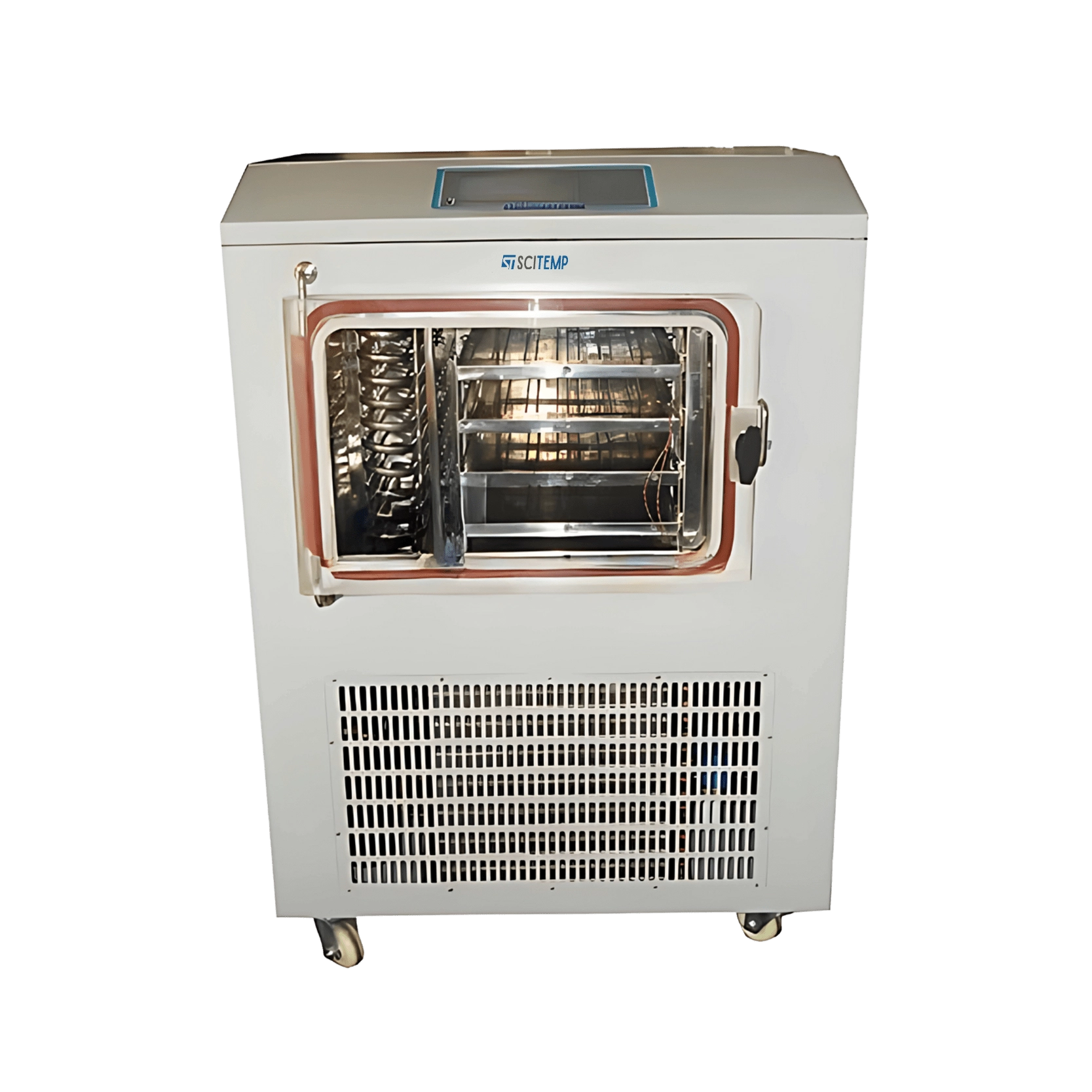

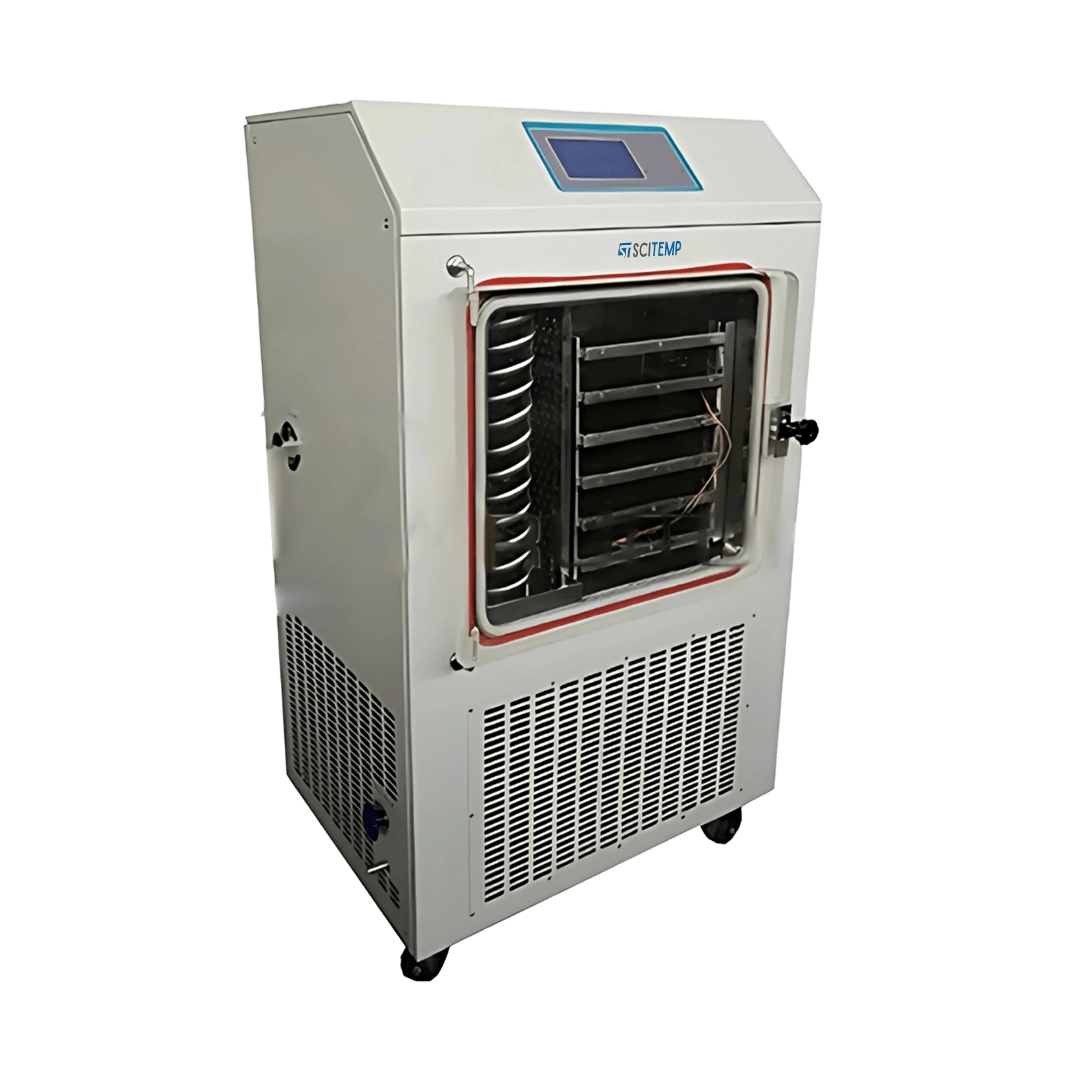

Pilot Freeze Dryer SPFD-C12 offers a 0.6 m² drying area and up to 6 kg batch capacity, with both manual and automatic controls. It features a high-efficiency, low-noise compressor and automates pre-freezing and drying processes. The system uses slope-controlled shelf temperature management for stable operation, with accurate sensor calibration for long-term use. An inert gas inflation valve extends product shelf life. Our pilot freeze dryers are commonly used in the pharmaceutical, chemical, and food industries.
| Drying Area | 0.6 ㎡ |
| Shelf | 6 Layer |
| Shelf Spacing | 50 mm |
| Shelf Size | 300 × 340 × 15 mm |
| Bulk Capacity | 6 L (10 mm thickness) |
| Condenser Capacity | 6 kg/24h |
| Shelf Temperature Range | -50 to +80 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Temperature | -55℃ |
| Voltage | 380V,50Hz |
| Cooling Temperature | More than 25℃ |
| Vial Capacity Φ 12mm | 4374 pcs |
| Vial Capacity Φ 16mm | 2400 pcs |
| Vial Capacity Φ 22mm | 1308 pcs |
| Defrosting | Off Cycle Defrosting |
| Power Supply | 3000 W |
| Dimension | 700 × 850 × 1400 mm |
| Weight | 400 Kg |
Pilot Freeze Dryer SPFD-C12 is extensively used across various industries, including medicine, pharmaceuticals, biological research, cosmetic industry, chemical and material science.
Pilot Freeze Dryer
Drying Area 0.3 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 70 mm
Shelf Size 300 × 340 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.5 ㎡
Extraction rate 5 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 1 ㎡
Processing Capacity 10 to 15 kg/batch
Extraction rate 16 L/S
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.4 ㎡
Extraction rate 4 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.306 ㎡
Extraction rate 3 L
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Drying Area 1.152 m²
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 480 × 600 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 200 L
Freeze drying area 2.25 ㎡
Extraction rate 22 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.69 ㎡
Extraction rate 7 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.4 ㎡
Processing Capacity 4 to 6 kg/batch
Extraction rate 6 L/S
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.6 ㎡
Processing Capacity 6 to 8 kg/batch
Extraction rate 8 L/S
Pilot Freeze Dryer
Freeze drying area 0.2 ㎡
Shelf size 400 × 270 mm
Shelf 2 plus 1 Layer (top shelf for heat radiation)
Shelf spacing 70 mm
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Scitemp Pilot Freeze Dryer is used for lyophilization, a process where substances are freeze-dried to remove moisture under vacuum. This helps preserve the structure, composition, and shelf life of sensitive products. It is widely used in industries such as pharmaceuticals, food, cosmetics, chemicals, biological research, and material science, especially for small-scale production, pilot testing, and product development.
The freeze dryer is equipped with a PLC (Programmable Logic Controller) control system and a user-friendly LCD touchscreen. It offers manual and automatic control options, allowing users to operate it based on their specific process needs. Users can monitor and adjust settings in real time, and the system also saves historical data and process curves for future reference and analysis.
It uses a CFC-free refrigerant, which is environmentally safe, and a high-efficiency, low-noise compressor. This combination ensures effective cooling with minimal environmental impact and quiet operation, making it suitable for lab and research environments.
The unit includes multilevel password protection, which helps prevent unauthorized access and ensures safe operation. It also comes with an inert gas inflation valve, which allows users to fill the chamber with protective gas like nitrogen after drying, helping to extend the product’s shelf life and prevent oxidation.
The unit has 6 stainless steel shelves, each measuring 300 × 340 × 15 mm, with 50 mm spacing between them. This design allows for even airflow and temperature distribution, supporting efficient drying of materials placed in trays, vials, or bulk.
