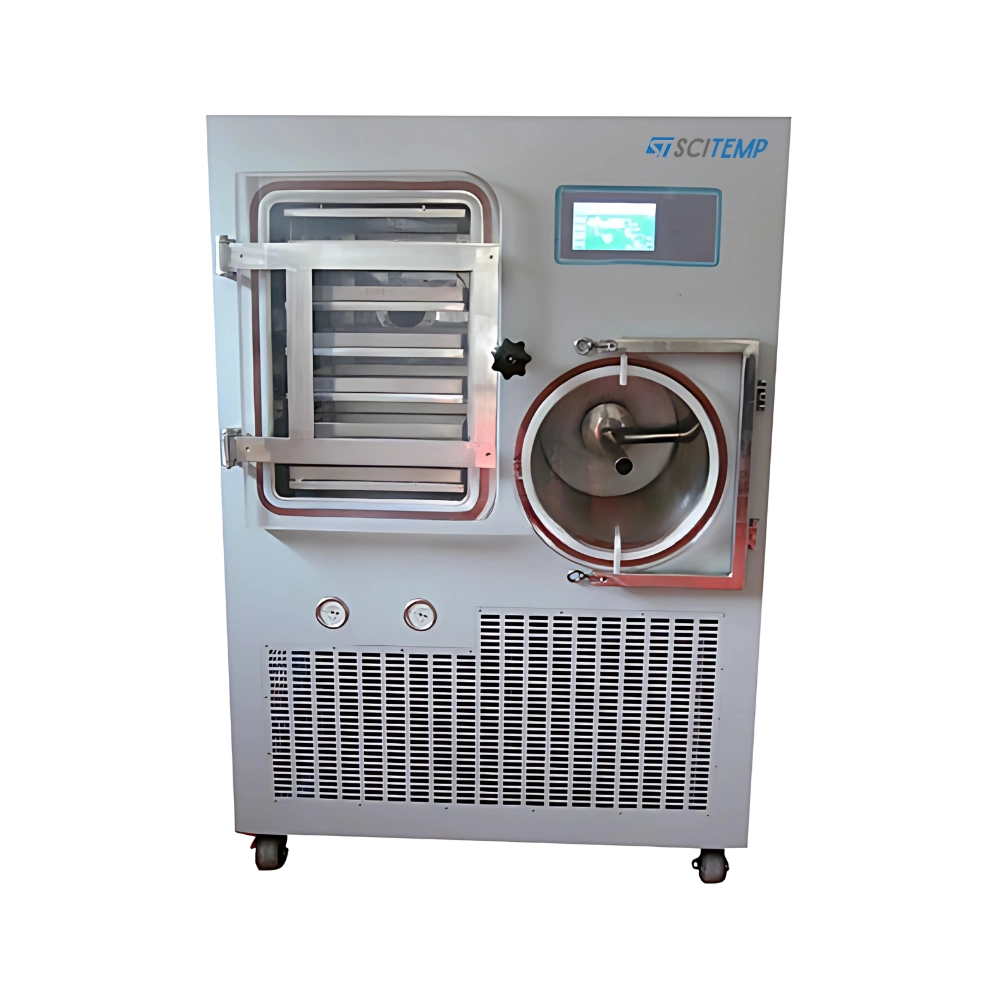

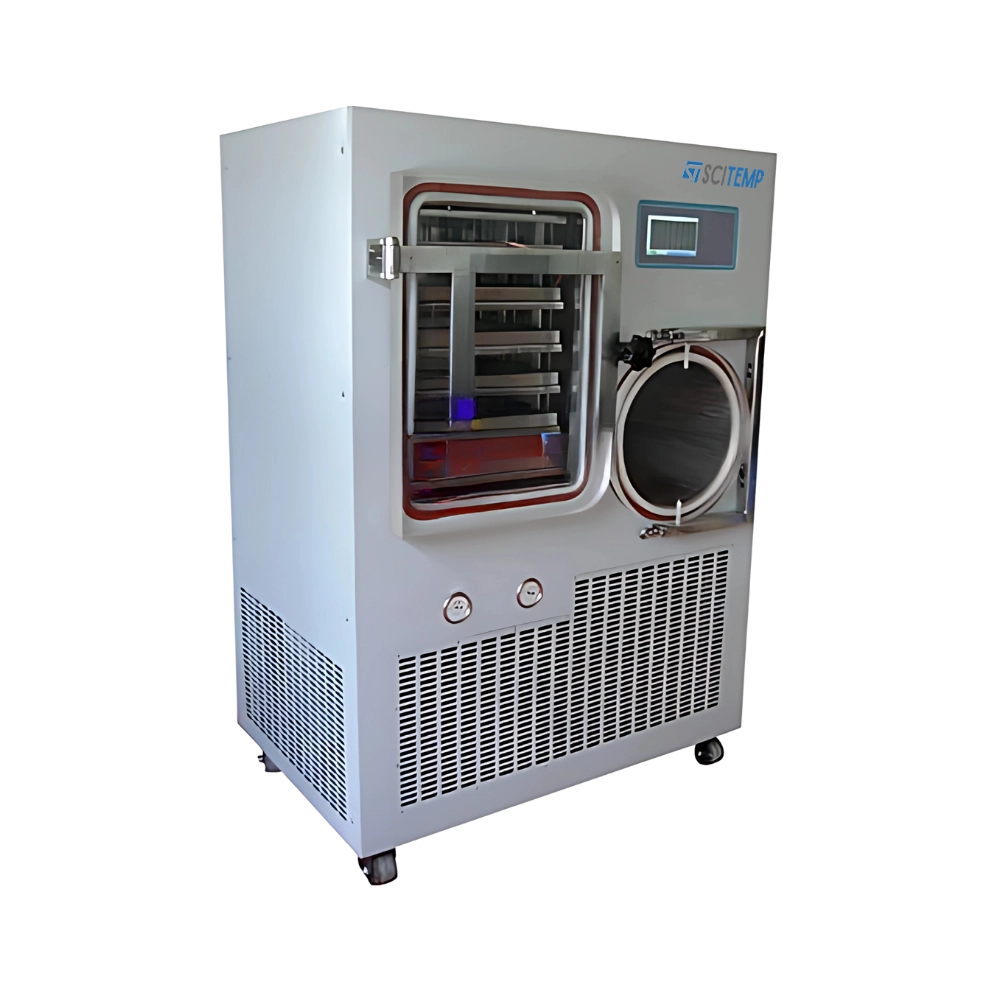

Pilot Freeze Dryer SPFD-C20 is a standard model with a 1.0m² drying area and a 10L bulk capacity. It has a low noise, good efficiency compressor with CFC-free refrigerant. An inert gas valve helps extend product shelf life after drying. The touchscreen makes it easy to set and control shelf temperatures and sensor calibration ensures long-term measurement accuracy. Our pilot freeze dryer used in biotech, pharma, and chemical industries.
| Drying Area | 1.0 ㎡ |
|---|---|
| Shelf | 6 plus 1 Layer (top shelf for heat radiation) |
| Shelf Spacing | 360 mm |
| Shelf Size | 360 × 480 ×15 mm |
| Bulk Capacity | 10 L (10 mm thickness) |
| Condenser Capacity | 15 kg/batch |
| Shelf Temperature Range | -50 to +70℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Temperature | Min to More than -70℃ |
| Cooling | More than 25℃ |
| Electric Defrosting | Available |
| Vial Capacity Φ12 mm | 7014 pcs |
| Vial Capacity Φ16 mm | 4158 pcs |
| Vial Capacity Φ22 mm | 2160 pcs |
| Power Supply | 380v/50Hz |
| Dimension | 1020 × 750 × 1700 mm |
| Weight | 700 Kg |
• Exhaust filter for pump
• Air inlet filter for pump
• Anti oil return valve for pump
• Vacuum degree adjustment
• Eutectic point test
• Tray
• 8 manifold ports with flasks
• PC and Software
Pilot Freeze Dryer SPFD-C20 is extensively used across various industries, including pharmaceutical and biotech, food and beverage, cosmetics, chemicals and research labs.
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
Frequently Asked Questions
It offers a generous drying area of 1.0 square meter and a bulk capacity of 10 liters with a product thickness of 10 mm. It comes with six shelves plus one top radiation shelf, allowing for efficient batch processing and larger sample volumes.
It is designed with a multilevel password protection system for user security, a real-time alarm display for immediate process feedback, historical data curve recording for process monitoring, and a touchscreen interface for quick and simple operation.
The shelf temperature range of the pilot freeze dryer is -50°C to +70°C, making it flexible for various drying needs. The condenser can collect up to 15 kg of ice per batch, operating efficiently at temperatures lower than -70°C, ensuring strong moisture capture.
It is extensively used across the pharmaceutical, biotechnology, food and beverage, cosmetics, chemical industries, and research laboratories. It is ideal for pilot production, small batch manufacturing, and research projects requiring high-quality freeze-drying.
It has a high vial loading capacity, 7014 vials of 12 mm diameter, 4158 vials of 16 mm diameter, 2160 vials of 22 mm diameter. This makes it suitable for medium to large batch production depending on the vial size and application requirements.
