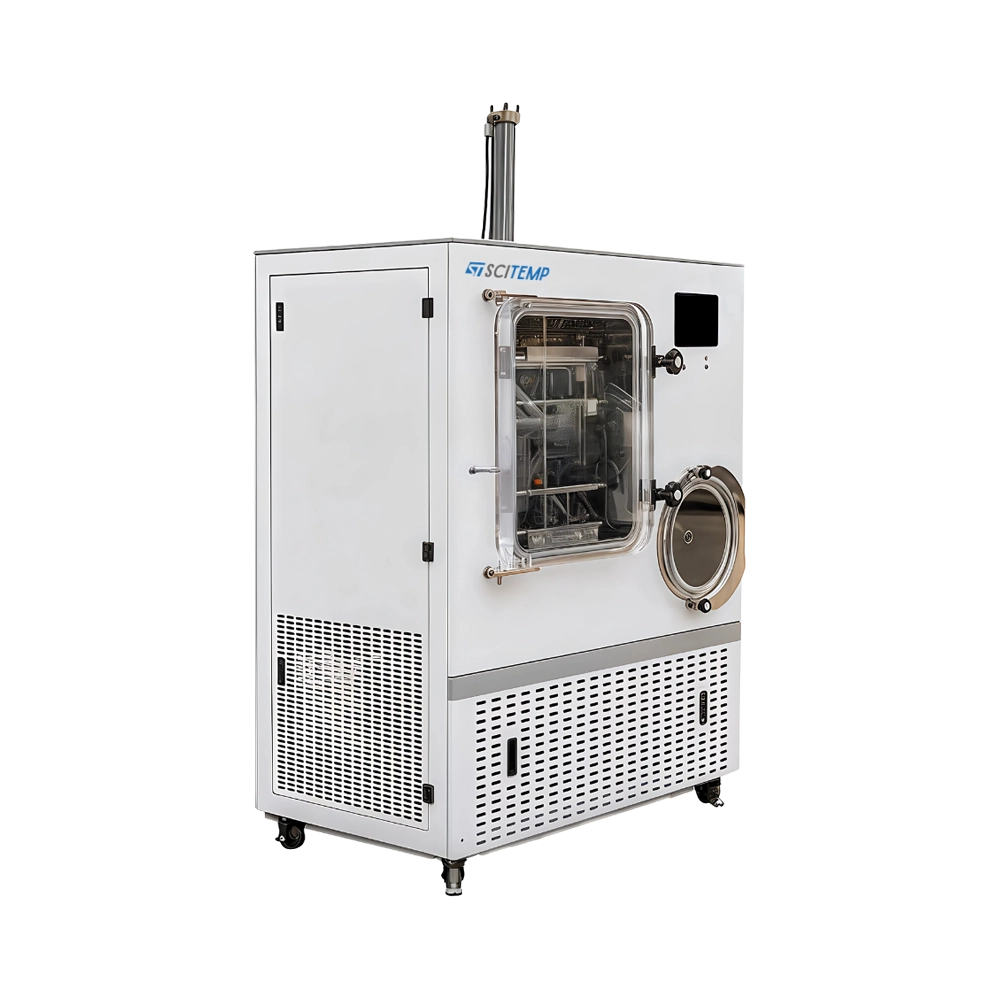

Pilot Freeze Dryer SPFD-B14 has a 50L capacity with a 0.5m² drying area, and a 5L extraction rate. It features a glass window for easy monitoring, a heating shelf for seamless freezing and drying, and an LCD touchscreen for user-friendly operation. Our pilot freeze dryer is ideal for food, pharmaceutical, and industrial applications.
| Type | Silicone oil |
| Capacity | 50 L |
| Freeze drying area | 0.5 ㎡ |
| Extraction rate | 5 L |
| Condenser temperature | -75℃ |
| Shelf number | 3+1 |
| Shelf size | 410 × 410 mm |
| Cooling mode | Air cooling, ventilation, room temperature 25℃ or less |
| Vacuum value | Below 5 Pa |
| Water harvesting ability | More than 10Kg/24h |
| Vials loading numbers | Φ12mm: 3705 |
| Machine Power | 5500 W |
| Packaging Dimension | 911 × 1405 × 1983 mm |
| Dimension | 911 × 1405 × 1983 mm |
| Net weight | 800 Kg |
| Gross weight | 850 Kg |
Stainless steel build
Low noise
Alarms
PID controller
Pilot Freeze Dryer SPFD-B14 is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields.
Vacuum pump
Pilot Freeze Dryer
Drying Area 1.0 ㎡
Shelf 6 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 360 mm
Shelf Size 360 × 480 ×15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 20L
Freeze drying area 0.2 ㎡
Extraction rate 2L
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.3 ㎡
Processing Capacity 3 to 5 kg/batch
Extraction rate 4 L/S
Pilot Freeze Dryer
Drying Area 0.5 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 410 × 410 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.69 ㎡
Extraction rate 7 L
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.152 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.306 ㎡
Extraction rate 3 L
Pilot Freeze Dryer
Drying Area 0.3 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 70 mm
Shelf Size 300 × 340 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 1 ㎡
Processing Capacity 10 to 15 kg/batch
Extraction rate 16 L/S
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 200 L
Freeze drying area 2.25 ㎡
Extraction rate 22 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.4 ㎡
Processing Capacity 4 to 6 kg/batch
Extraction rate 6 L/S
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.04 ㎡
Extraction rate 10 L
