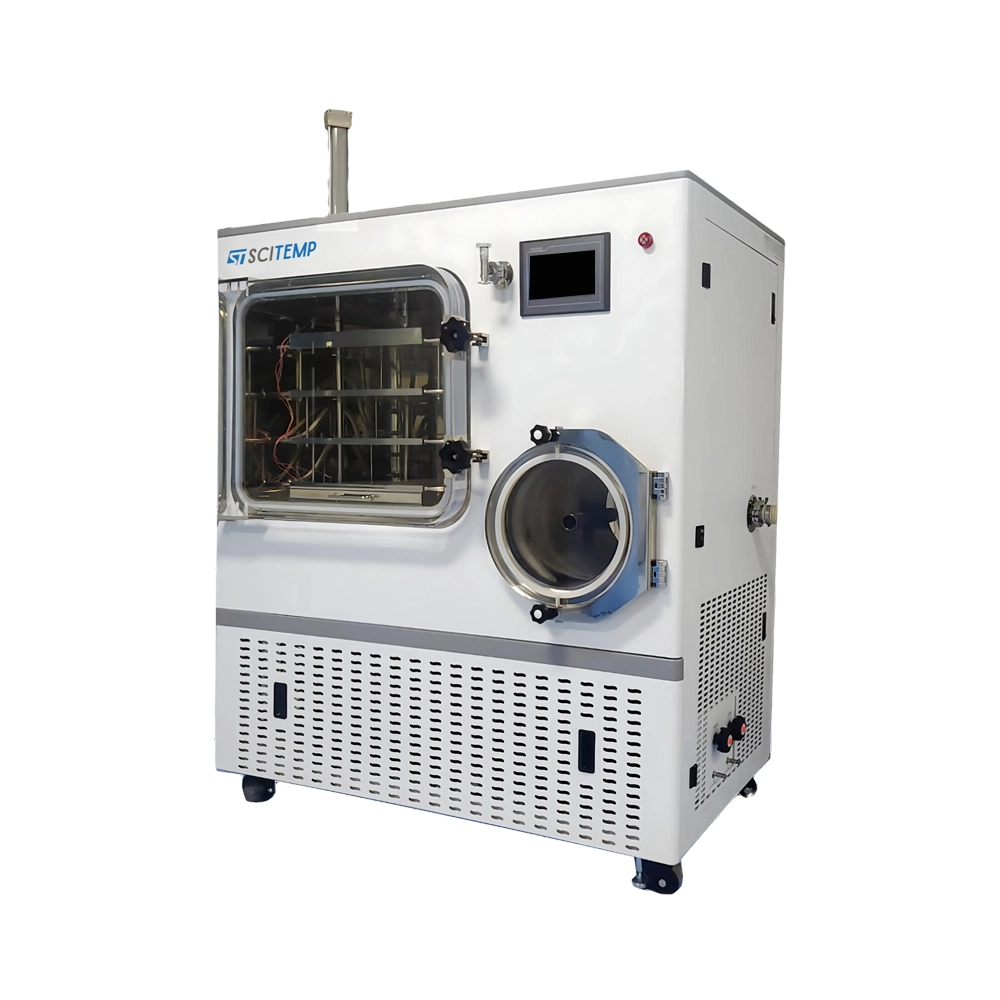

Pilot Freeze Dryer SPFD-B12 has a 30L capacity with a 0.306m² freeze-drying area and a 3L extraction rate. It features standard PID control for precise temperature and process regulation. A glass window allows easy monitoring without opening the chamber. The heating shelf of our pilot freeze dryer enables freezing and drying in the same place for smooth operation. Its rectangular chamber and product tray are made of stainless steel, ensuring durability, corrosion resistance, and easy cleaning.
| Type | Silicone oil |
| Capacity | 30 L |
| Freeze drying area | 0.306 ㎡ |
| Extraction rate | 3 L |
| Condenser temperature | -75℃ |
| Shelf number | 3+1 |
| Shelf size | 300 × 340 mm |
| Cooling mode | Air cooling, ventilation, room temperature 25℃ or less |
| Vacuum value | Below 5 Pa |
| Water harvesting ability | More than 6Kg/24h |
| Vials loading numbers | Φ12mm: 2187 |
| Machine Power | 4500 W |
| Packaging Dimension | 1033 × 1452 × 1869 mm |
| Dimension | 853 × 1272 × 1679 mm |
| Net weight | 450 Kg |
| Gross weight | 500 Kg |
LCD touchscreen
Low noise
Aeration valve
Alarms
Pilot Freeze Dryer SPFD-B12 is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields.
