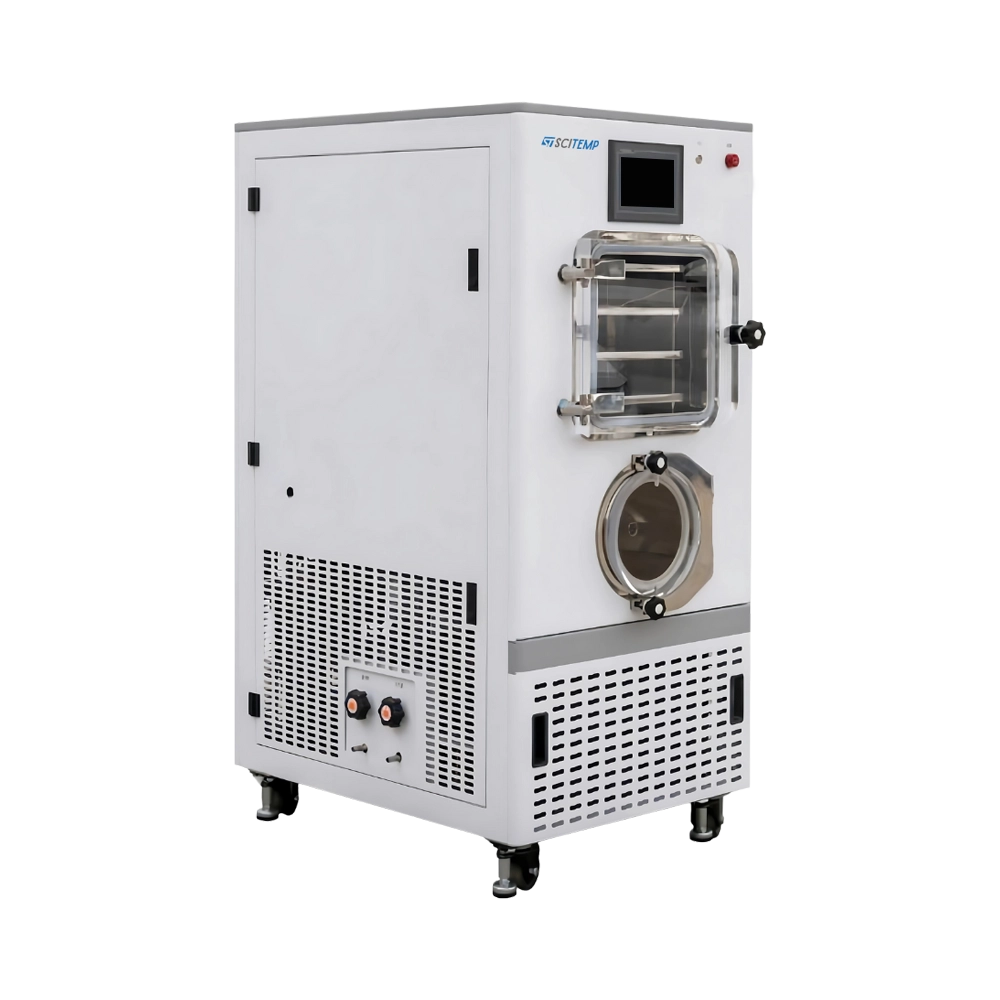

Pilot Freeze Dryer SPFD-B10 offers 0.2m² freeze-drying area with an extraction rate of 2L. The heating shelf allows the freezing and drying processes to be completed in the same place, ensuring a seamless operation. Our pilot freeze dryer has standard PID control that ensures precise temperature and process regulation for optimal performance. The internal surface of the rectangular chamber and the product tray are made of stainless steel, ensuring durability, corrosion resistance, and easy cleaning.
| Type | Silicone oil |
| Capacity | 20L |
| Freeze drying area | 0.2 ㎡ |
| Extraction rate | 2L |
| Condenser temperature | -75℃ |
| Shelf number | 2+1 |
| Shelf size | 400 × 270 mm |
| Cooling mode | Air cooling, ventilation, room temperature 25℃ or less |
| Vacuum value | Below 5 Pa |
| Water harvesting ability | 3 Kg/24h |
| Vials loading numbers | Φ12mm: 1554 |
| Machine Power | 3000 W |
| Packaging Dimension | 1130 × 890 × 1720 mm |
| Dimension | 1033 × 781 × 1580 mm |
| Net weight | 350 Kg |
| Gross weight | 380 Kg |
LCD touchscreen
Powerful compressor
Low noise
Aeration valve
Alarms
Pilot Freeze Dryer SPFD-B10 is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields.
