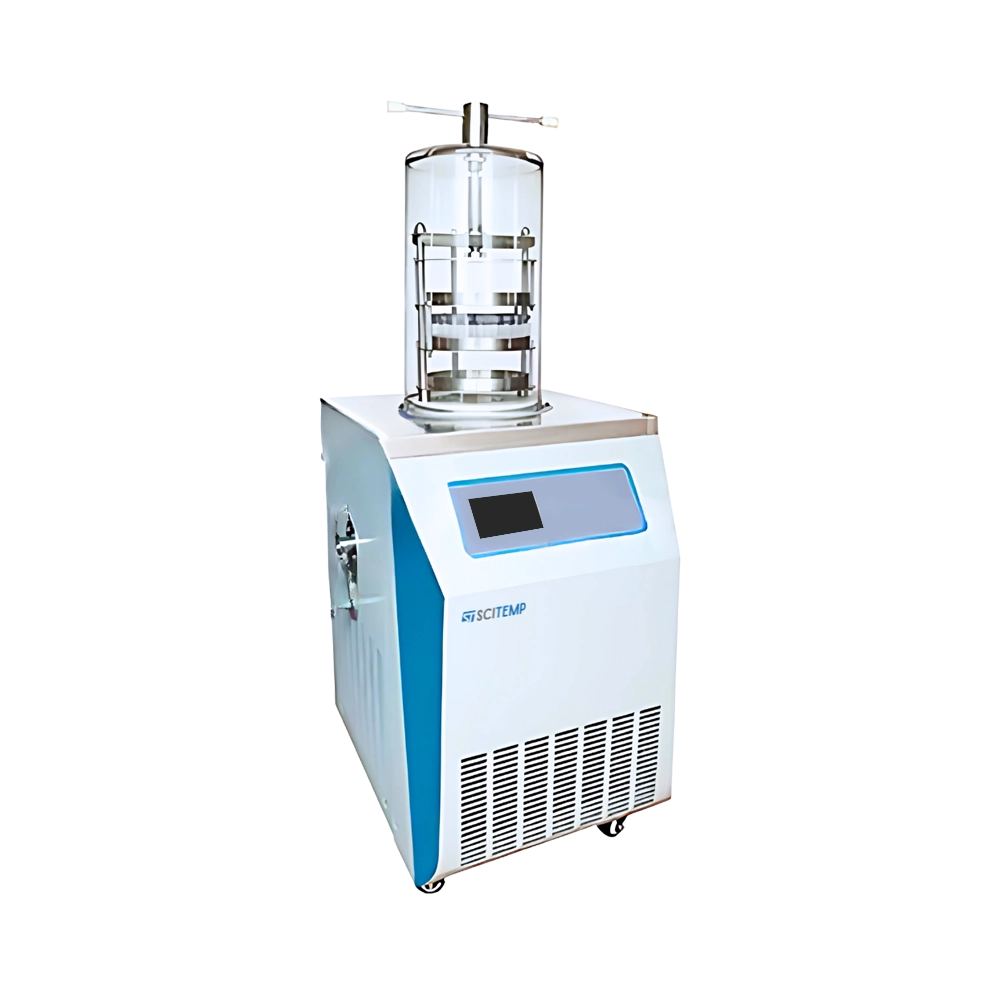

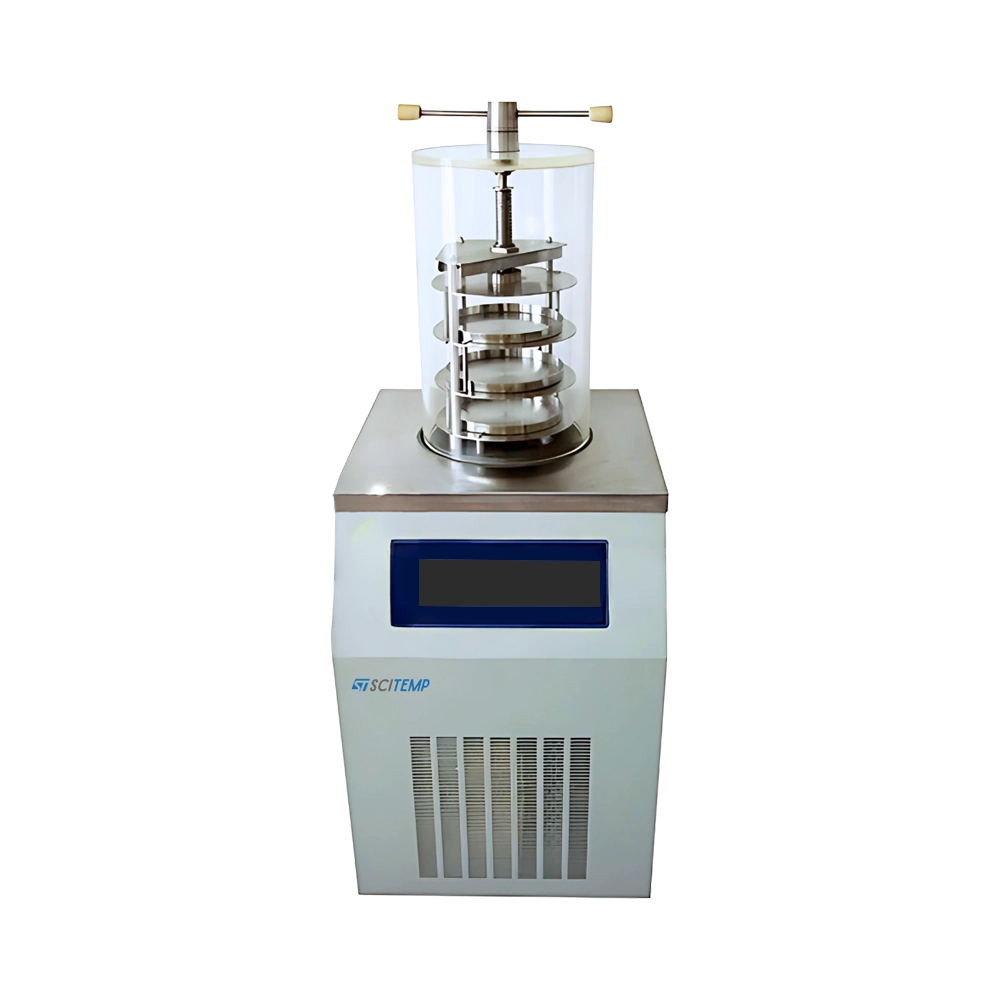

Top Press Freeze Dryer STFD-E14 offers a 0.08 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. It features a stainless-steel air inlet valve, corrosion-resistant, and leak-proof. The condenser is designed for uniform and effective ice capture, enhancing freeze-drying performance. It also displays real-time curves for sample, condenser temperatures, and vacuum levels. Our top press freeze dryer is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.08 ㎡ |
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ180 mm × 3/4 Layer |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity (10 mm thickness) | 0.8 Liter |
| Vial Capacity Φ 12mm | 492 pcs |
| Vial Capacity Φ 16mm | 279 pcs |
| Vial Capacity Φ 22mm | 147 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1070 W |
| Dimension | 560 × 460 × (710 + 430) mm |
| Weight | 105 Kg |
Top Press Freeze Dryer STFD-E14 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Top press Freeze Dryer
Type Top press
Freeze drying area 0.09 ㎡
Material Tray Size Φ200 mm
Extraction rate 4 L/S
Top press Freeze Dryer
Drying Area 0.09 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.1㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.1 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Capacity 10L
Freeze drying area 0.09 ㎡
Freeze drying time 24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.09 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.09 ㎡
Material Tray Size Φ200 mm
Extraction rate 0.9 L
Top press Freeze Dryer
Type Top press
Capacity 18 L
Freeze drying area 0.135 ㎡
Freeze drying time 24h
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Scitemp top press freeze dryers are widely used across multiple industries such as pharmaceuticals, biotechnology, chemical processing, and food production. They are especially useful for preserving materials like vaccines, enzymes, plant extracts, and specialty food products, making them a versatile tool for both research and manufacturing environments.
Scitemp top press freeze dryers are designed to be user-friendly with a compact structure and an intuitive colour LCD touchscreen. The control panel is available in English and shows real-time curves for sample temperature, condenser temperature, and vacuum levels, allowing users to monitor the process easily. Their reliable performance and simple interface make them ideal for both laboratories and production environments.
Scitemp freeze dryers are equipped with large condensers that have external coiling tubes and a pre-freezing function. This design ensures uniform ice capture and enhances overall drying efficiency. It helps maintain a stable environment inside the chamber, which is crucial for consistent and high-quality freeze-drying results.
Yes, Scitemp freeze dryers come with multiple tray layers and spacing options that support different sample sizes and containers, including vials and flasks. They also offer optional manifolds and flasks in various volumes, making them versatile enough to handle a range of sample types in medicine, biology, food, and chemical research.
Scitemp uses high-quality materials such as stainless steel 304 for critical components like condensers, trays, and air inlet valves. These parts are corrosion-resistant and leak-proof, ensuring long-term reliability. The systems also use CFC-free refrigerants and have vacuum pumps with high pumping speed for safe, efficient operation.
