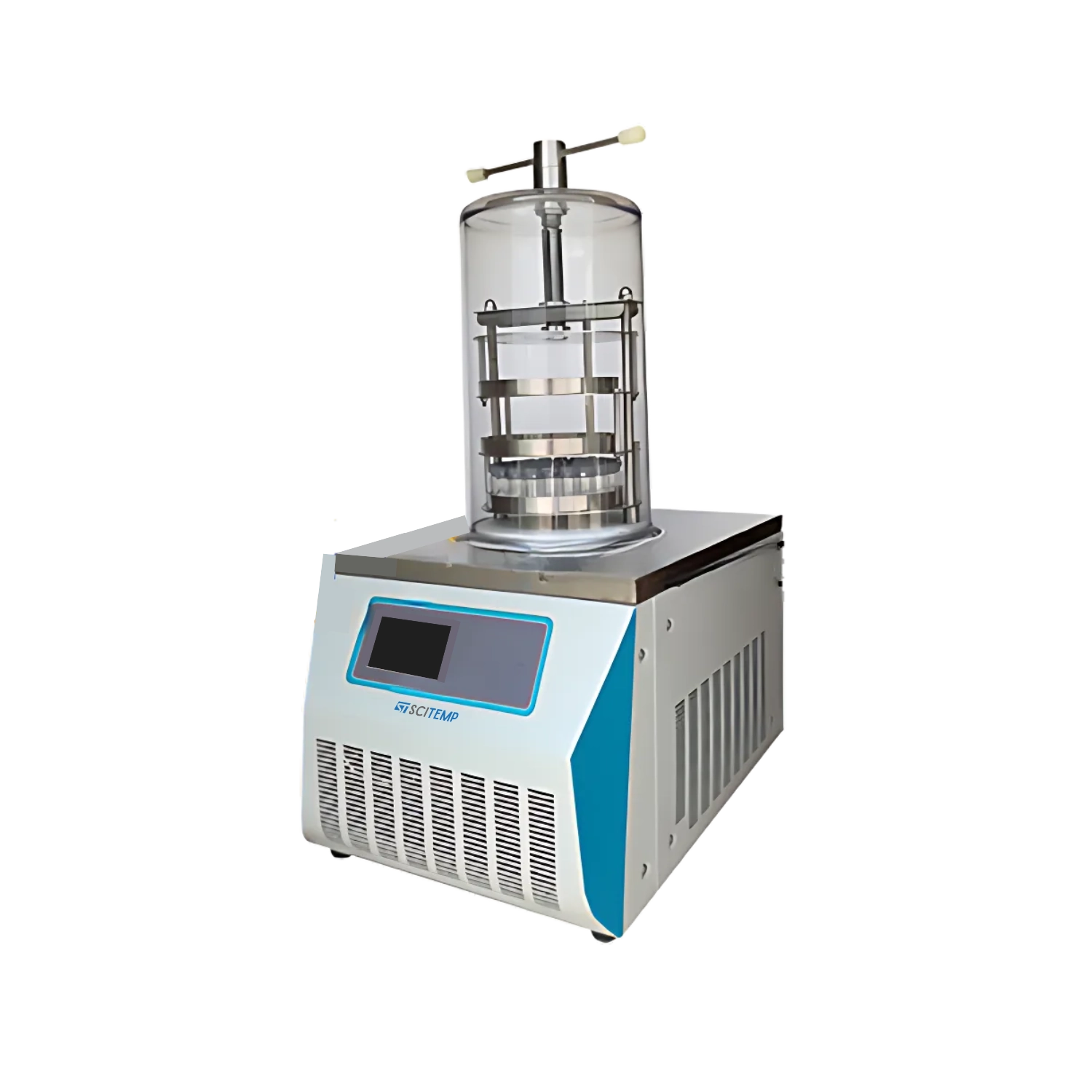

Top Press Freeze Dryer STFD-E13 has a 0.1 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. It features a colour LCD touchscreen that displays running time, sample, condenser temperatures, and vacuum level. A USB port allows easy data export and viewing in Excel format. The condenser, trays, and shelves are made of anti-corrosion stainless steel 304. Condenser designed for uniform and efficient ice capture. Our top press freeze dryer is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.1 ㎡ |
| Condenser Temperature | -80 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ180 mm × 3/4 Layer |
| Shelf Spacing | 50 mm |
| Bulk Liquid Capacity (10 mm thickness) | 0.8/1 Liter |
| Vial Capacity Φ 12mm | 656 pcs |
| Vial Capacity Φ 16mm | 372 pcs |
| Vial Capacity Φ 22mm | 196 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1070 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 75 Kg |
Top Press Freeze Dryer STFD-E13 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Top press Freeze Dryer
Drying Area 0.1㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Drying Area 0.09 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.09 ㎡
Material Tray Size Φ200 mm
Extraction rate 0.9 L
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Type Top press
Capacity 18 L
Freeze drying area 0.135 ㎡
Freeze drying time 24h
Top press Freeze Dryer
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.09 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Type Top press
Capacity 10L
Freeze drying area 0.09 ㎡
Freeze drying time 24h
Top press Freeze Dryer
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Scitemp top press freeze dryers are designed for efficient and uniform freeze drying of sensitive materials. With features like a colour LCD touchscreen, real-time data display, and stainless steel 304 components, these units offer a reliable and user-friendly solution. They are ideal for labs and industries that require consistent results and easy operation for samples in medicine, pharmacy, biology, and food.
The pre-freezing function in Scitemp top press freeze dryers enables samples to be rapidly frozen inside the condenser before the drying phase begins. This improves the efficiency of sublimation during drying and helps maintain the structure and quality of heat-sensitive samples, which is especially important in pharmaceutical, food, and biological research applications.
Scitemp top press models are equipped with a USB port that lets users export freeze-drying data in Excel format. This makes it easy to track and analyse key parameters such as temperature and vacuum levels over time. It’s especially helpful for researchers and quality control teams who need accurate, downloadable records for reports or regulatory compliance.
The key internal parts of Scitemp top press freeze dryers, including the condenser, trays, and drying shelves, are made from high-quality stainless steel 304. This material is corrosion-resistant, long-lasting, and safe for use with a variety of biological and chemical samples, ensuring durability and hygiene in sensitive environments.
Yes, Scitemp models are equipped with a USB port that allows users to export freeze-drying data easily. The data can be opened and analysed in Excel format, which helps users track performance, validate results, and maintain records for research or production documentation.
