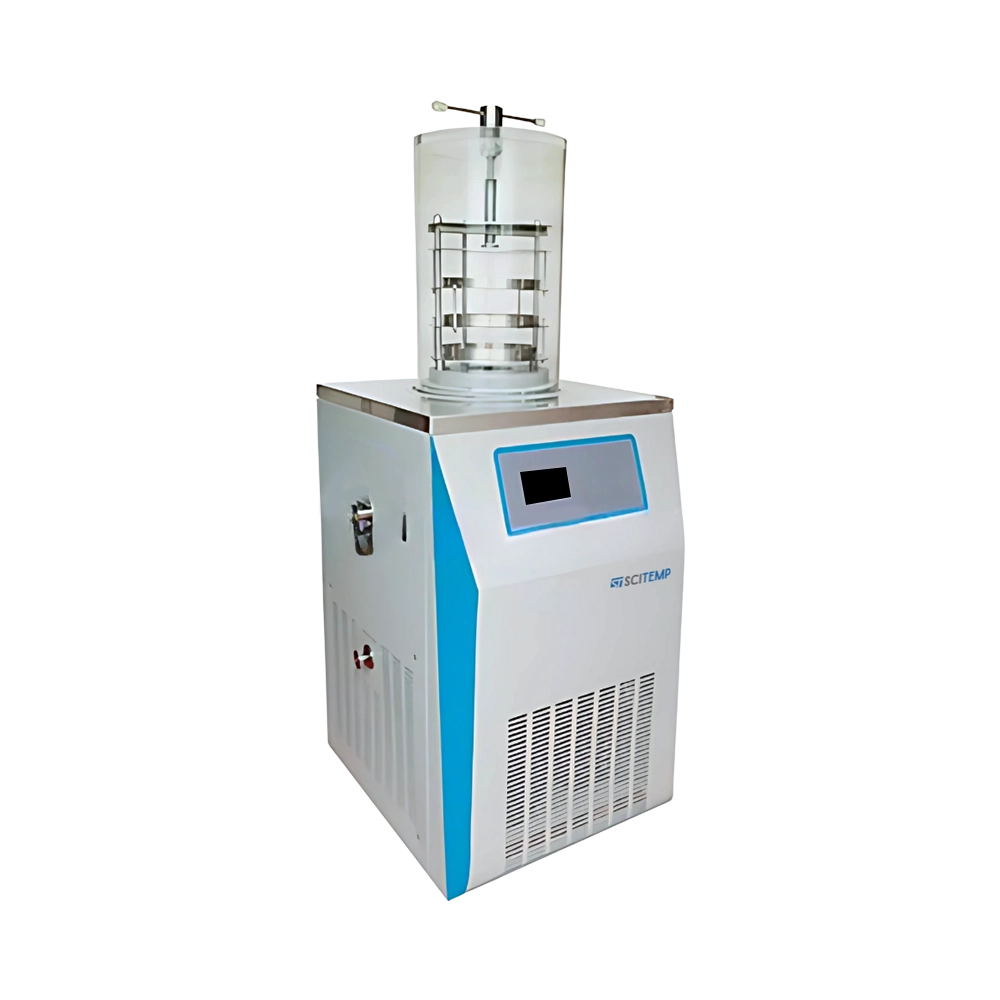

Top Press Freeze Dryer STFD-E19 features a 0.09 ㎡ drying area with a condenser capacity of 6 kg per 24h. Our Top Press Freeze Dryer uses a CFC-free refrigerant compressor ensures low noise and high efficiency during operation. It is equipped with a high-speed vacuum pump that helps achieve a strong final vacuum for effective drying. A built-in USB port allows users to export freeze-drying data. The condenser is designed for uniform and efficient ice capture. It is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.09 ㎡ |
| Condenser Temperature | -80 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 6 kg/24h |
| Sample Tray | Φ 200 mm × 3/4 Layer |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity (10 mm thickness) | 0.9 Liter |
| Vial Capacity Φ 12mm | 615 pcs |
| Vial Capacity Φ 16mm | 345 pcs |
| Vial Capacity Φ 22mm | 183 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 4L/S, 14.4 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1400 W |
| Dimension | 635 × 540 × (970 + 430) mm |
| Weight | 160 Kg |
Top Press Freeze Dryer STFD-E19 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Top press Freeze Dryer
Drying Area 0.1㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Type Top press
Capacity 10L
Freeze drying area 0.09 ㎡
Freeze drying time 24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.09 ㎡
Material Tray Size Φ200 mm
Extraction rate 0.9 L
Top press Freeze Dryer
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Top press Freeze Dryer
Drying Area 0.09 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.1 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.1㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Scitemp freeze dryers are designed with advanced features to handle sensitive materials like biological samples, pharmaceuticals, and chemicals. They include a low-noise, high-efficiency compressor with CFC-free refrigerant and a high-speed vacuum pump to achieve a strong final vacuum. This ensures gentle and effective freeze-drying that preserves the structure and activity of delicate samples.
Scitemp freeze dryers are equipped with a colour LCD touch screen that displays key data like sample temperature, condenser temperature, and vacuum degree. Some models also include a USB port, allowing users to export process data and review it later in Excel format. This helps researchers or operators monitor the process closely and keep reliable records for quality control.
Scitemp uses stainless steel 304 for critical components such as the condenser, trays, and drying shelves. This material is corrosion-resistant, durable, and easy to clean, making it ideal for applications in the medical, chemical, and food industries. The acrylic drying chamber is also sturdy and transparent, allowing users to safely view sample conditions during operation.
The condenser in Scitemp freeze dryers features a large opening and external coiling tubes. This design allows for better airflow and more efficient ice capture during the freeze-drying process. A well-performing condenser is crucial for removing moisture effectively, which leads to faster drying times and better sample preservation.
Scitemp freeze dryers are versatile and commonly used in medicine, pharmacy, biological research, the chemical industry, and food production. They can handle a wide range of materials such as vaccines, enzymes, plant extracts, chemical solutions, and food products. Freeze-drying helps extend shelf life and maintain product quality, making these machines valuable for both research and commercial use.
