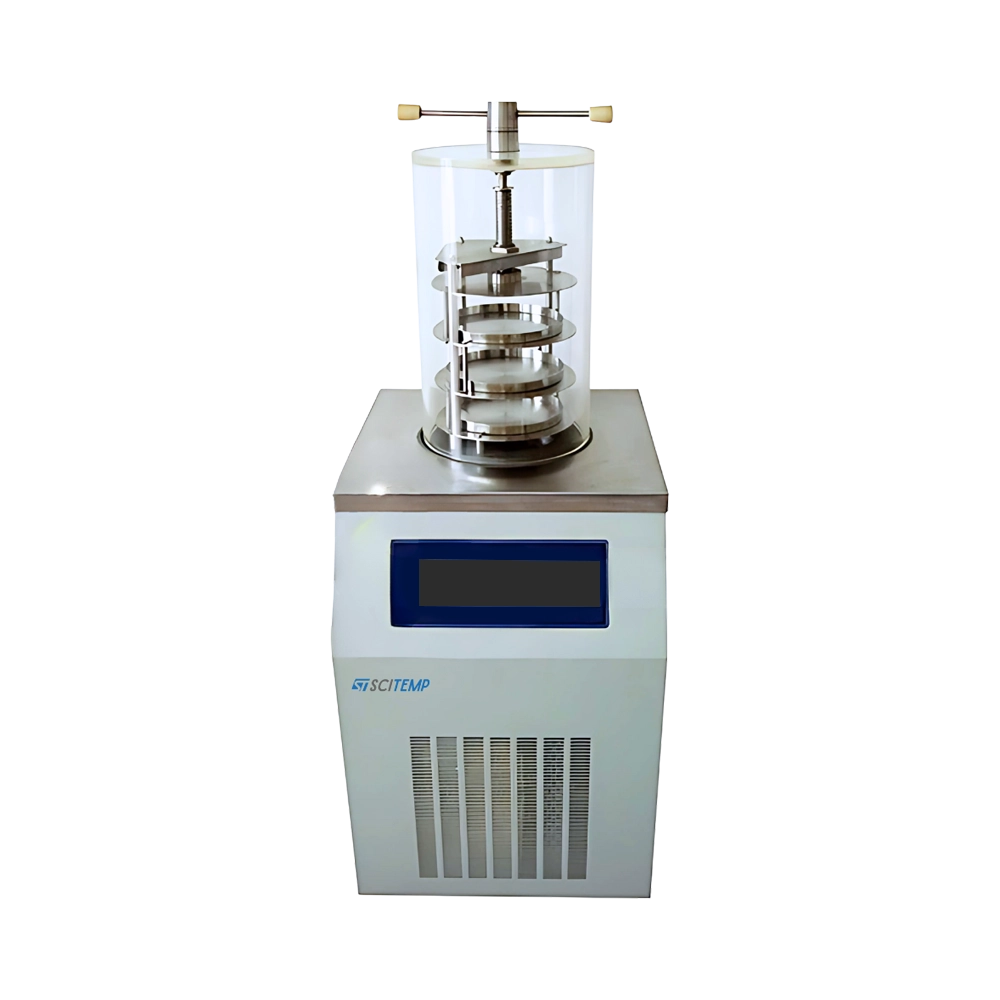

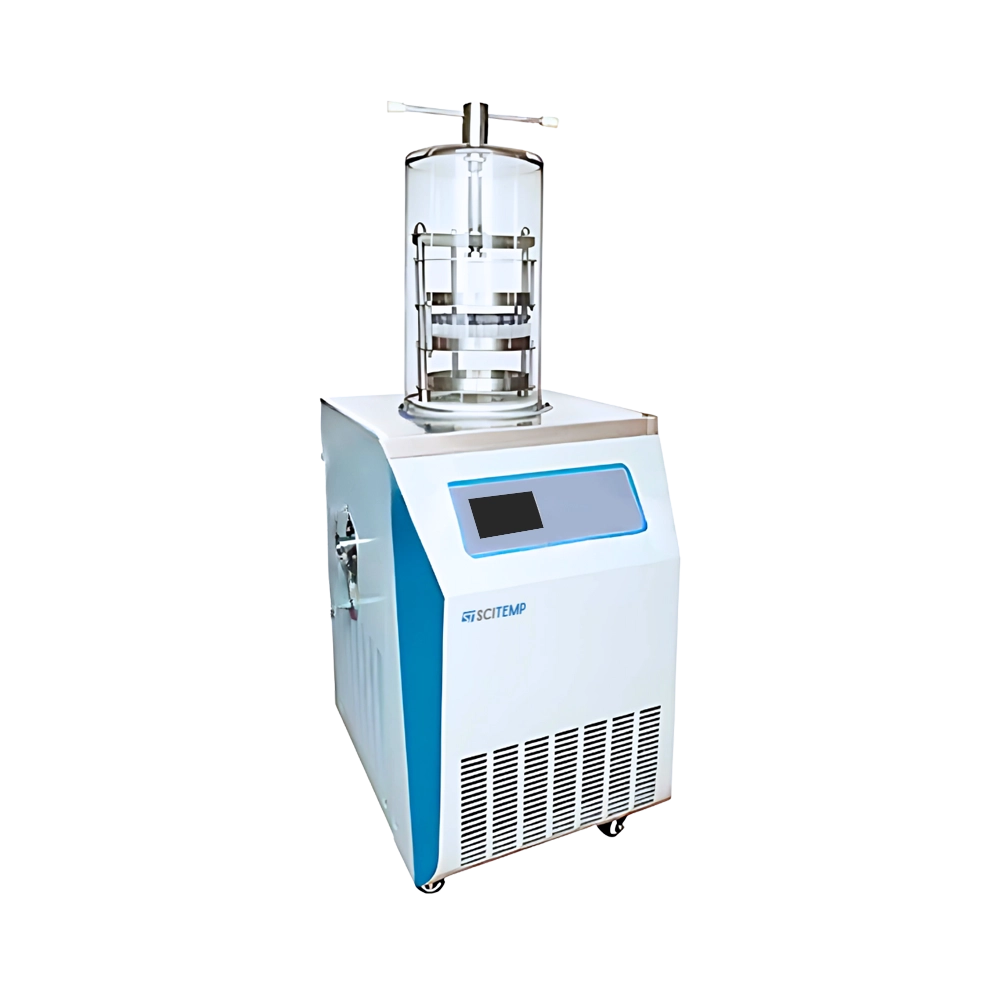

Top Press Freeze Dryer STFD-E16 has a 0.1 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. It features a compact, easy-to-use design with an English control panel. It includes a high-speed vacuum pump for efficient drying and a USB port to export data for viewing in Excel. All key components like the condenser, trays, and shelves are made of anti-corrosion stainless steel 304 for durability. Our top press freeze dryer is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.1㎡ |
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ180 mm × 3/4 Layer |
| Shelf Spacing | 50 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1 Liter |
| Vial Capacity Φ 12mm | 656 pcs |
| Vial Capacity Φ 16mm | 372 pcs |
| Vial Capacity Φ 22mm | 196 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1070 W |
| Dimension | 560 × 460 × (710 + 430) mm |
| Weight | 105 Kg |
Top Press Freeze Dryer STFD-E16 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Top press Freeze Dryer
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Capacity 12L
Freeze drying area 0.09 ㎡
Freeze drying time 24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.09 ㎡
Material Tray Size Φ200 mm
Extraction rate 4 L/S
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Top press Freeze Dryer
Drying Area 0.1 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.09 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.1 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.1㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Capacity 10L
Freeze drying area 0.09 ㎡
Freeze drying time 24h
Scitemp Top Press Freeze Dryers are built with safety and durability in mind. The internal components like the condenser, shelves, and trays are made of high-quality stainless steel 304, which resists corrosion and contamination. This ensures that samples—whether pharmaceutical, biological, or food-based—remain pure and free from any material degradation during the freeze-drying process.
The colour LCD touchscreen control panel provides a user-friendly interface that makes operating the freeze dryer simple and efficient. It displays real-time data such as temperatures and vacuum levels and allows the user to monitor the entire process clearly. Some models also store this data automatically, and users can export it via USB to Excel for further review or documentation.
Yes, Scitemp Top Press Freeze Dryers are designed to be versatile. They are used across various fields like medicine, pharmaceuticals, biology, chemistry, and food production. Whether you're freeze-drying samples for research or small-scale production, these dryers offer flexibility with different tray sizes, vial capacities, and optional attachments like flasks and manifolds.
Scitemp Freeze Dryers are equipped with a high-speed vacuum pump that ensures strong vacuum levels above 10 Pa, which is ideal for efficient and thorough drying. The vacuum pump has a flow rate of 2 Liters per second (or 7.2 m³/h), helping to create the low-pressure environment necessary for removing moisture at low temperatures without damaging sensitive materials.
Scitemp freeze dryers are designed with ease of use in mind. With clear control panels, automatic features like pre-freezing, and quiet compressors, they are ideal even for users with limited experience. The systems come with an English-language interface, intuitive touchscreen controls, and clear acrylic chambers for easy visual monitoring, making them convenient for everyday lab use.
