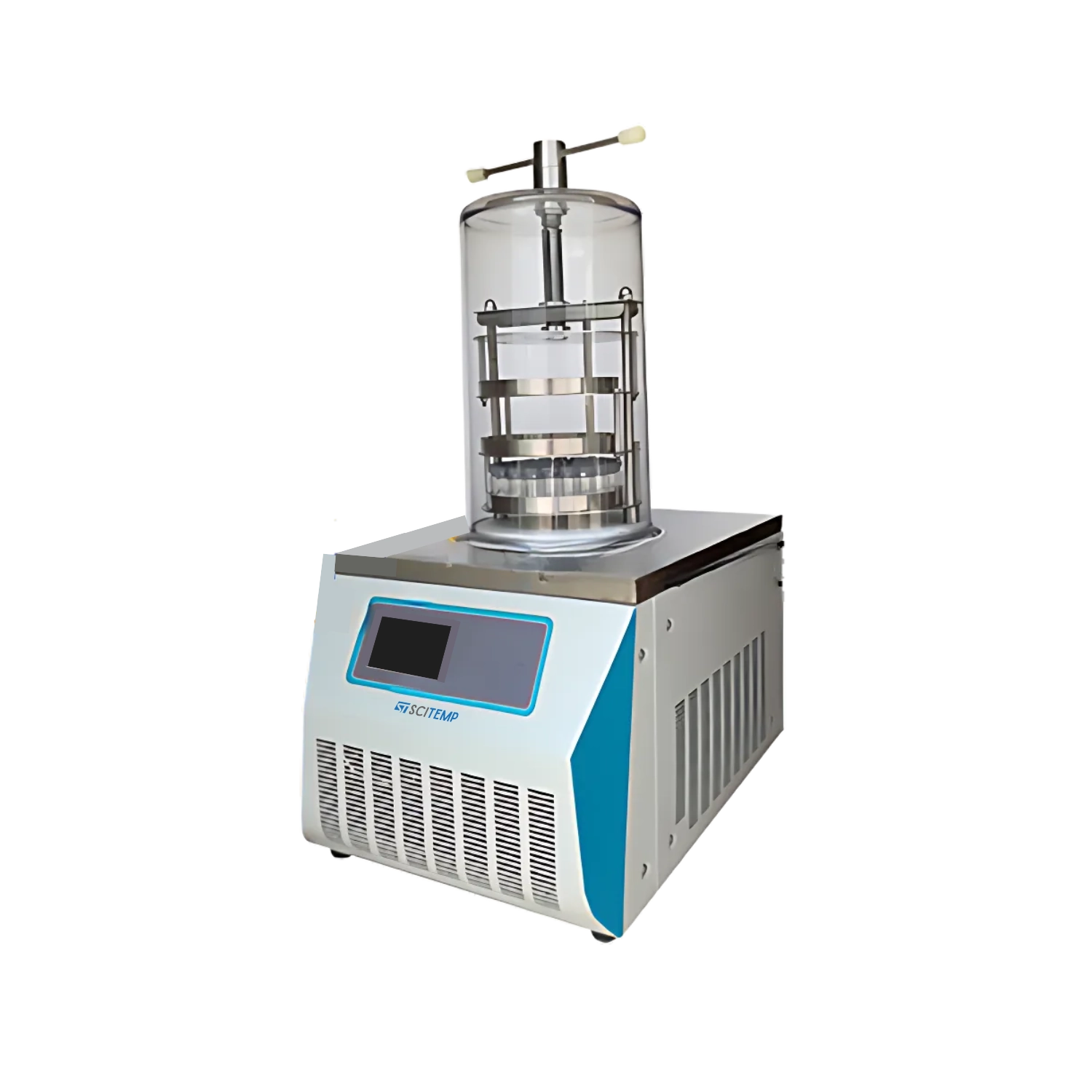

Top Press Freeze Dryer STFD-E10 offers a 0.08 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. Our top press freeze dryer features a colour LCD touch screen displaying real-time data, automatic saving, and USB export to Excel. Compact and easy to use, it runs on a CFC-free refrigerant with a low-noise, high-efficiency compressor. It is widely used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.08 ㎡ |
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ180 mm × 3/4 Layer |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity (10 mm thickness) | 0.8 Liter |
| Vial Capacity Φ 12mm | 492 pcs |
| Vial Capacity Φ 16mm | 279 pcs |
| Vial Capacity Φ 22mm | 147 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 970 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 75 Kg |
Top Press Freeze Dryer STFD-E10 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Top press Freeze Dryer
Type Top press
Freeze drying area 0.09 ㎡
Material Tray Size Φ200 mm
Extraction rate 4 L/S
Top press Freeze Dryer
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Capacity 18 L
Freeze drying area 0.135 ㎡
Freeze drying time 24h
Top press Freeze Dryer
Drying Area 0.1 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 0.8 L
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Type Top press
Freeze drying area 0.09 ㎡
Material Tray Size Φ200 mm
Extraction rate 0.9 L
Top press Freeze Dryer
Type Top press
Capacity 10L
Freeze drying area 0.09 ㎡
Freeze drying time 24h
Top press Freeze Dryer
Type Top press
Freeze drying area 0.08 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Top press Freeze Dryer
Drying Area 0.1 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.09 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.09 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 6 kg/24h
Top press Freeze Dryer
Drying Area 0.08 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Top press Freeze Dryer
Drying Area 0.1㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
The Scitemp Top Press Freeze Dryer is designed for ease of use and high efficiency. It features a colour LCD touchscreen that displays real-time data such as running time, sample temperature, and vacuum level. The system automatically saves this data and allows for easy export via USB in Excel format. Its compact structure, low-noise operation, and use of CFC-free refrigerant make it ideal for both small labs and industrial settings.
The Scitemp freeze dryer is built with high-quality materials to ensure durability and performance. It includes a stainless steel 304 body and a stainless-steel air inlet valve, offering corrosion resistance and long life. The drying chamber is made from clear acrylic, allowing users to visually monitor samples during the drying process. These quality materials support reliability in demanding lab and industrial environments.
The Scitemp freeze dryer is highly versatile and widely used across various industries. It is suitable for freeze-drying liquids, biological samples, and pharmaceutical formulations. Common applications include research in medicine and biology, pharmaceutical product development, food preservation, and use in the chemical industry. Its capacity for handling both bulk liquids and vial samples makes it ideal for laboratories with diverse freeze-drying needs.
Yes, the Scitemp Top Press Freeze Dryer offers optional manifold ports and flask accessories to increase its flexibility. Users can connect to 8 ports and choose from various flask sizes, including 1000 ml, 500 ml, 250 ml, 100 ml, and 50 ml. This makes it easy to freeze-dry multiple types of samples simultaneously, enhancing productivity and customization for different lab processes.
The Scitemp freeze dryer offers a drying area of 0.08 to 0.1 square meters and a condenser capacity of 3 to 4 kg per 24 hours. It supports a condenser temperature of -55°C (with an optional -80°C model) and maintains a vacuum level above 10 Pa. The unit includes multiple sample tray options, adjustable shelf spacing, and vial holding capacities based on size. Its 970 W power consumption, 75 kg weight, and compact dimensions make it a practical choice for both small and medium-scale operations.
