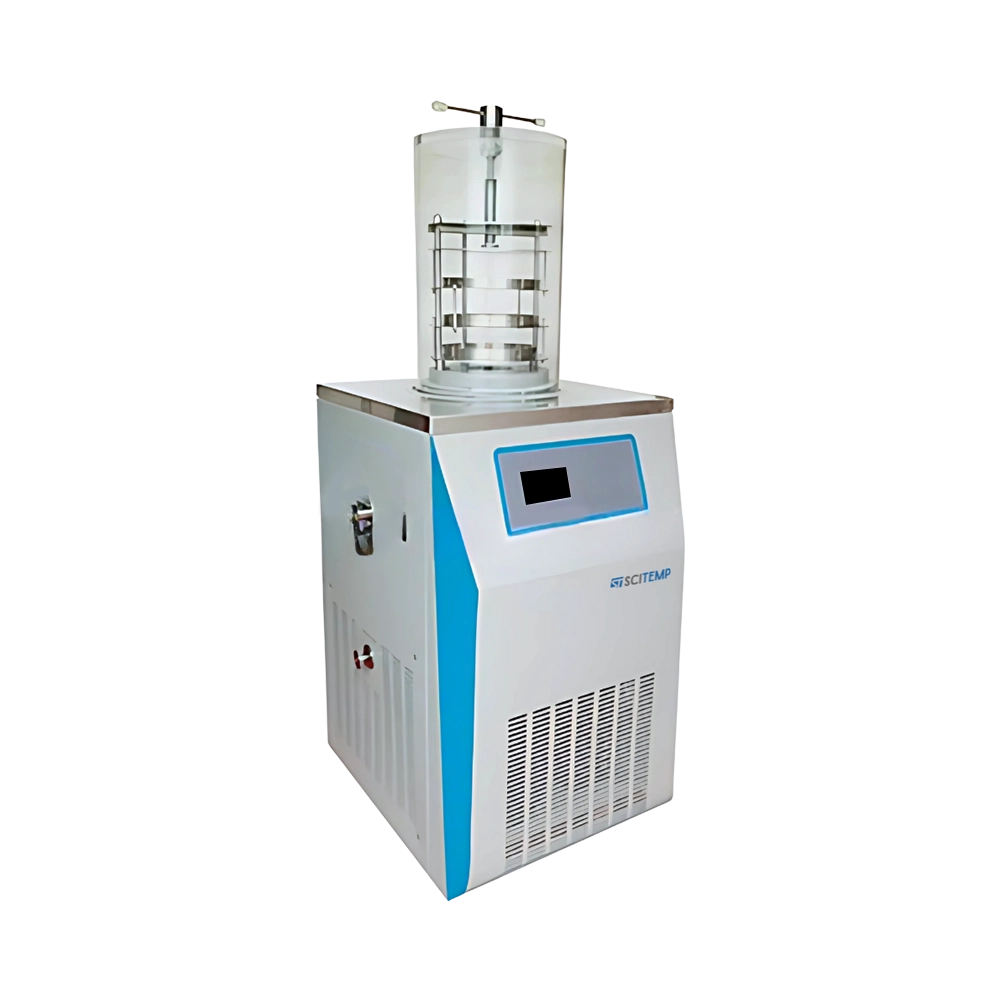

Top Press Freeze Dryer STFD-E20 offers a 0.12 ㎡ drying area with a condenser capacity of 6 kg per 24h. It features a big-opening condenser with external coiling tubes and a pre-freezing function. The condenser, trays, drying shelf, and pre-freezing shelf are made of stainless steel 304, ensuring corrosion resistance. A colour LCD touch screen displays running time, sample, condenser temperatures, and vacuum degree in Pa, and saves data automatically. Our top press freeze dryer is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.12 ㎡ |
|---|---|
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 6 kg/24h |
| Sample Tray | Φ 200 mm × 3/4 Layer |
| Shelf Spacing | 50 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1.2 Liter |
| Vial Capacity Φ 12mm | 820 pcs |
| Vial Capacity Φ 16mm | 460 pcs |
| Vial Capacity Φ 22mm | 244 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 4L/S, 14.4 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1400 W |
| Dimension | 635 × 540 × (970 + 430) mm |
| Weight | 160 Kg |
Top Press Freeze Dryer STFD-E20 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
-10%
Frequently Asked Questions
Scitemp Top Press Freeze Dryers are built using high-quality materials like stainless steel 304 for key components such as the condenser, trays, drying shelf, and pre-freezing shelf. This material is highly resistant to corrosion, which ensures durability and hygiene—especially important in medical, pharmaceutical, and food applications. The acrylic drying chamber is also tough and transparent, making it safe and easy to observe samples during operation.
Scitemp freeze dryers are designed for user-friendly operation. They have a compact structure that fits easily in laboratories or small production spaces. The control panel is displayed in English, and the colour LCD touch screen clearly shows running time, sample and condenser temperatures, and vacuum levels. Important process data is also saved automatically, and some models include a USB port to export data for viewing in Excel. These features make the system easy to operate, even for those new to freeze drying.
The condenser system in Scitemp freeze dryers includes a large opening and external coiling tubes, which improve ice capture and cooling performance. Many models also offer a built-in pre-freezing function, allowing users to freeze samples directly in the machine before drying begins. This combination helps ensure faster and more uniform drying results, which is especially beneficial for temperature-sensitive samples.
Scitemp freeze dryers are versatile and widely used across industries such as medicine, pharmacy, biological research, the chemical industry, and food production. They are ideal for drying sensitive samples like vaccines, biological cultures, enzymes, chemical compounds, or even fruits and prepared meals. Freeze drying preserves product structure, potency, and shelf life, making it suitable for both research and commercial purposes.
Scitemp freeze dryers use compressors from internationally recognized brands, known for their low noise and high efficiency. These compressors, combined with CFC-free refrigerants, help maintain consistent cooling while being environmentally friendly and energy efficient. This makes Scitemp dryers not only powerful but also suitable for quiet lab environments and sustainable operations.
