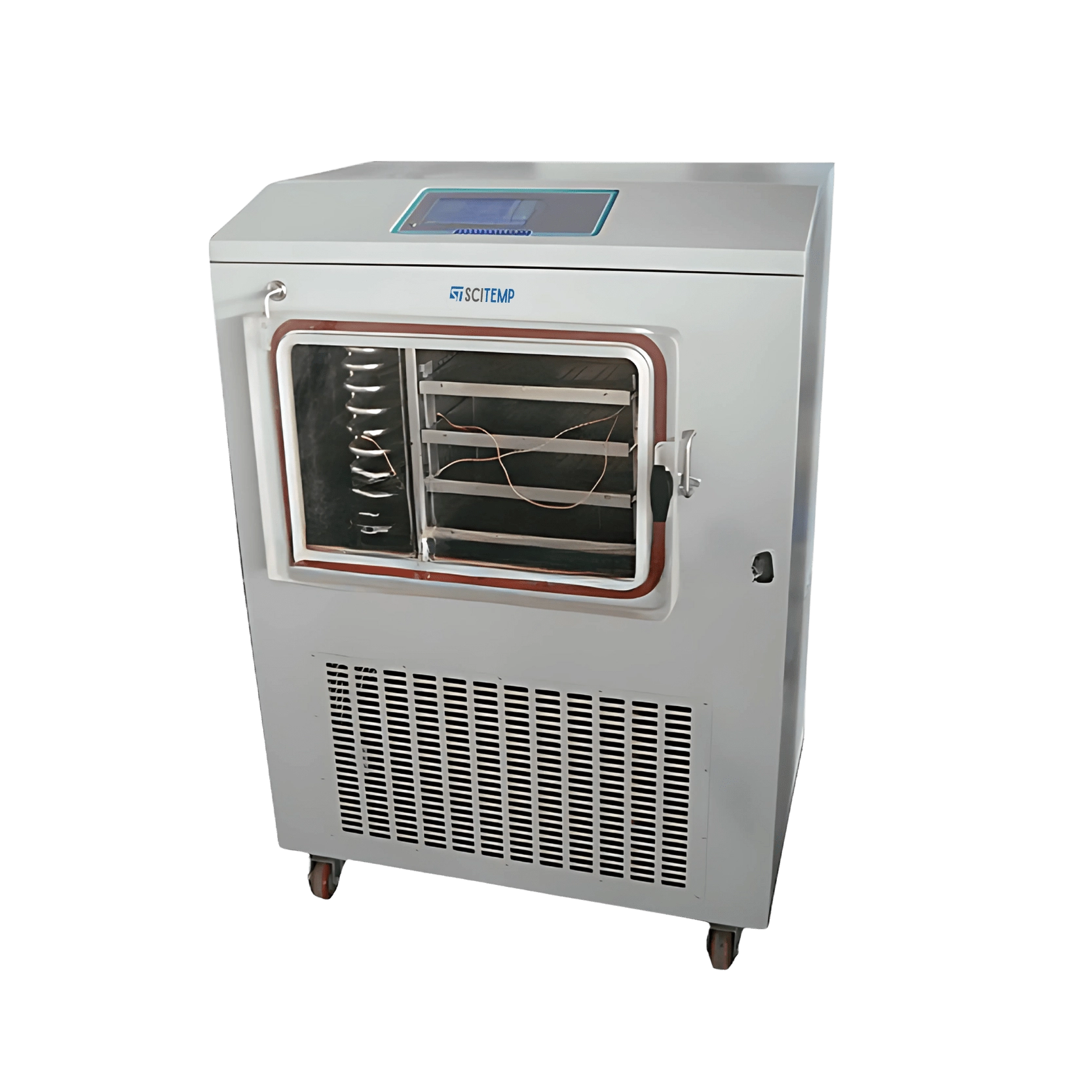

Pilot Freeze Dryer SPFD-C10 features a 0.4 m² drying area with a processing capacity of 4 kg per batch. It has real-time alarm display, equipped with a multifunctional PLC control system, CFC-free refrigerant and compressor provide high efficiency with low noise operation. A control system allows regulation of shelf temperature, while slope-controlled heating and cooling ensure stability. Our pilot freeze dryers are used in pharmaceutical, chemical and food industries.
| Drying Area | 0.4 ㎡ |
| Shelf | 4 Layer |
| Shelf Spacing | 50 mm |
| Shelf Size | 300 × 340 × 15 mm |
| Bulk Capacity | 4 L (10 mm thickness) |
| Condenser Capacity | 6 kg/24h |
| Shelf Temperature Range | -50 to +80 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Temperature | -55℃ |
| Voltage | 220V,50Hz |
| Cooling Temperature | More than 25℃ |
| Vial Capacity Φ 12mm | 2916 pcs |
| Vial Capacity Φ 16mm | 1600 pcs |
| Vial Capacity Φ 22mm | 872 pcs |
| Defrosting | Off Cycle Defrosting |
| Power Supply | 2800 W |
| Dimension | 700 × 850 × 1230 mm |
| Weight | 300 Kg |
Pilot Freeze Dryer SPFD-C10 is extensively used across various industries, including medicine, pharmaceuticals, biological research, the chemical industry, and food processing.
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.6 ㎡
Processing Capacity 6 to 8 kg/batch
Extraction rate 8 L/S
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.5 ㎡
Extraction rate 5 L
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.306 ㎡
Extraction rate 3 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.3 ㎡
Processing Capacity 3 to 5 kg/batch
Extraction rate 4 L/S
Pilot Freeze Dryer
Drying Area 1.0 ㎡
Shelf 6 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 360 mm
Shelf Size 360 × 480 ×15 mm
Pilot Freeze Dryer
Drying Area 0.3 ㎡
Shelf Size 400 × 270 mm
Shelf 3 plus 1 layer (top shelf for heat radiation)
Shelf Spacing 70 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 200 L
Freeze drying area 2.25 ㎡
Extraction rate 22 L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 1 ㎡
Processing Capacity 10 to 15 kg/batch
Extraction rate 16 L/S
Pilot Freeze Dryer
Type Silicone oil
Capacity 20L
Freeze drying area 0.2 ㎡
Extraction rate 2L
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.4 ㎡
Processing Capacity 4 to 6 kg/batch
Extraction rate 6 L/S
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.04 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.69 ㎡
Extraction rate 7 L
This Pilot Freeze Dryer is designed for drying materials through the lyophilization process, which removes moisture by freezing and then sublimating it under vacuum. It is widely used in industries such as pharmaceuticals, biotechnology, food processing, chemicals, and biological research. Its flexible design and performance make it suitable for pilot-scale experiments and small-batch production.
It has a total drying area of 0.4 m² and a processing capacity of up to 4 kg per batch. This allows efficient freeze-drying of samples with consistent results, ideal for pilot production or research applications.
It features a multifunctional PLC control system that regulates the shelf temperature between -50°C to +80°C. This precise temperature control is crucial for maintaining product stability and achieving optimal drying results. The slope-controlled heating and cooling provide consistent and stable operation throughout the freeze-drying cycle.
The freeze dryer is equipped with 4 stainless steel 304 shelves, each measuring 300 × 340 × 15 mm. The shelf spacing is 50 mm, which offers enough room for a variety of sample containers and ensures even temperature distribution during the drying process.
The system includes a historical curve display feature, which records and displays previous cycles. This is helpful for tracking process conditions, ensuring reproducibility, and maintaining detailed records of freeze-drying runs for research or quality assurance purposes.
