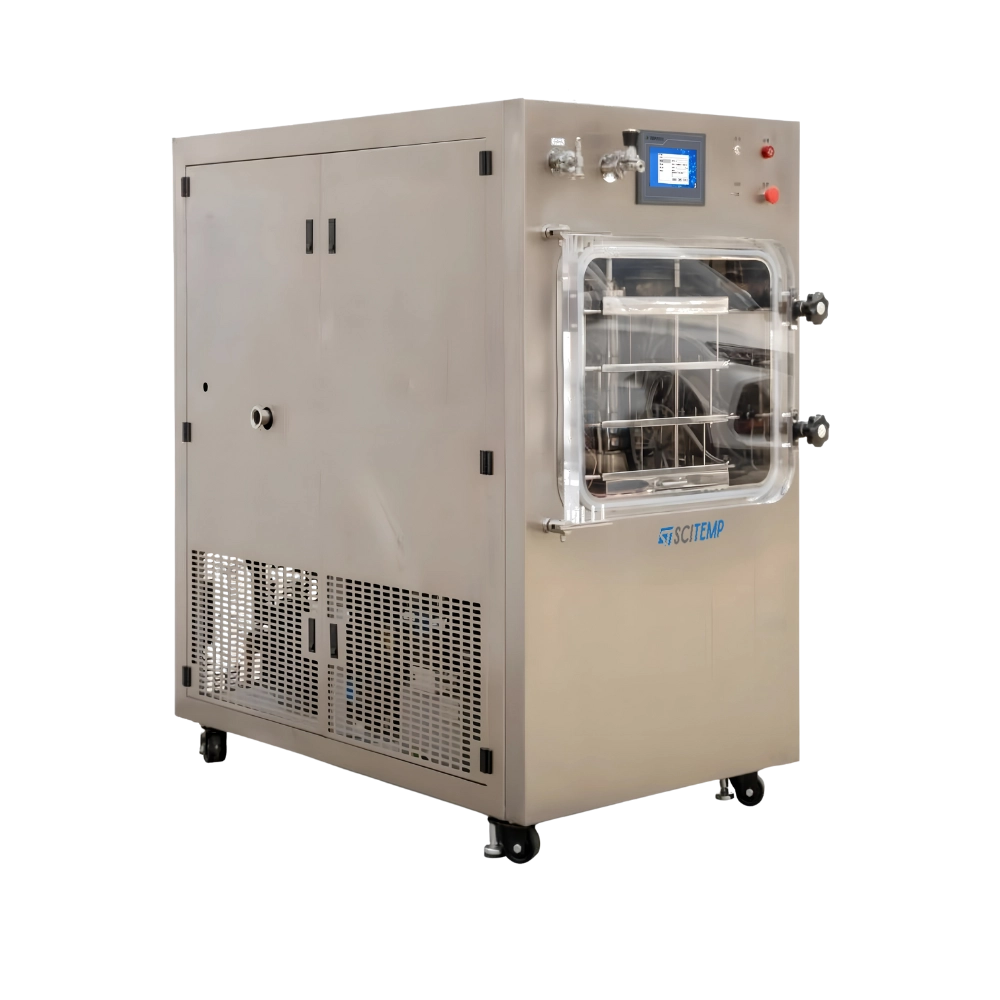

Pilot Freeze Dryer SPFD-B17 comes with 200L capacity and a 2.25 ㎡drying area. With a 22L extraction rate, it ensures fast and efficient moisture removal. A standard PLC control ensures precise temperature and process regulation. Separating the condenser from the drying chamber enhances water capture efficiency and reduces drying time. The heating shelf enables freezing and drying in one place for seamless operation. Its stainless-steel chamber and trays offer durability, corrosion resistance, and easy cleaning.
| Type | Silicone oil |
| Capacity | 200 L |
| Freeze drying area | 2.25 ㎡ |
| Extraction rate | 22 L |
| Condenser temperature | -75℃ |
| Shelf number | 5+1 |
| Shelf size | 500 × 900 × 20mm |
| Cooling mode | Air cooling, ventilation, room temperature 25℃ or less |
| Vacuum value | Below 10 Pa |
| Water harvesting ability | More than 40 Kg/24h |
| Vials loading numbers | Φ12mm: 14400 |
| Machine Power | 6500 W |
| Packaging Dimension | 2208 × 1380 × 1930 mm |
| Dimension | 2008 × 1180× 2014 mm |
| Net weight | 1200 Kg |
| Gross weight | 1300 Kg |
LCD touchscreen
Low noise
Alarms
Glass window
Pilot Freeze Dryer SPFD-B17 is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields.
Vacuum pump
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.4 ㎡
Processing Capacity 4 to 6 kg/batch
Extraction rate 6 L/S
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.306 ㎡
Extraction rate 3 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 20L
Freeze drying area 0.2 ㎡
Extraction rate 2L
Pilot Freeze Dryer
Drying Area 1.0 ㎡
Shelf 6 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 360 mm
Shelf Size 360 × 480 ×15 mm
Pilot Freeze Dryer
Drying Area 0.5 ㎡
Shelf 3 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 410 × 410 × 20 mm
Pilot Freeze Dryer
Type Silicone oil
Freeze drying area 0.3 ㎡
Processing Capacity 3 to 5 kg/batch
Extraction rate 4 L/S
Pilot Freeze Dryer
Freeze drying area 0.2 ㎡
Shelf size 400 × 270 mm
Shelf 2 plus 1 Layer (top shelf for heat radiation)
Shelf spacing 70 mm
Pilot Freeze Dryer
Drying Area 1.152 m²
Shelf 4 plus 1 Layer (top shelf for heat radiation)
Shelf Spacing 100 mm
Shelf Size 480 × 600 × 20 mm
Pilot Freeze Dryer
Drying Area 0.6 ㎡
Shelf 6 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Drying Area 0.4 ㎡
Shelf 4 Layer
Shelf Spacing 50 mm
Shelf Size 300 × 340 × 15 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.152 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 100 L
Freeze drying area 1.04 ㎡
Extraction rate 10 L
Pilot Freeze Dryer
Type Silicone oil
Capacity 30 L
Freeze drying area 0.4 ㎡
Extraction rate 4 L
Pilot Freeze Dryer
Drying Area 0.3 ㎡
Shelf Size 400 × 270 mm
Shelf 3 plus 1 layer (top shelf for heat radiation)
Shelf Spacing 70 mm
Pilot Freeze Dryer
Type Silicone oil
Capacity 50 L
Freeze drying area 0.5 ㎡
Extraction rate 5 L
