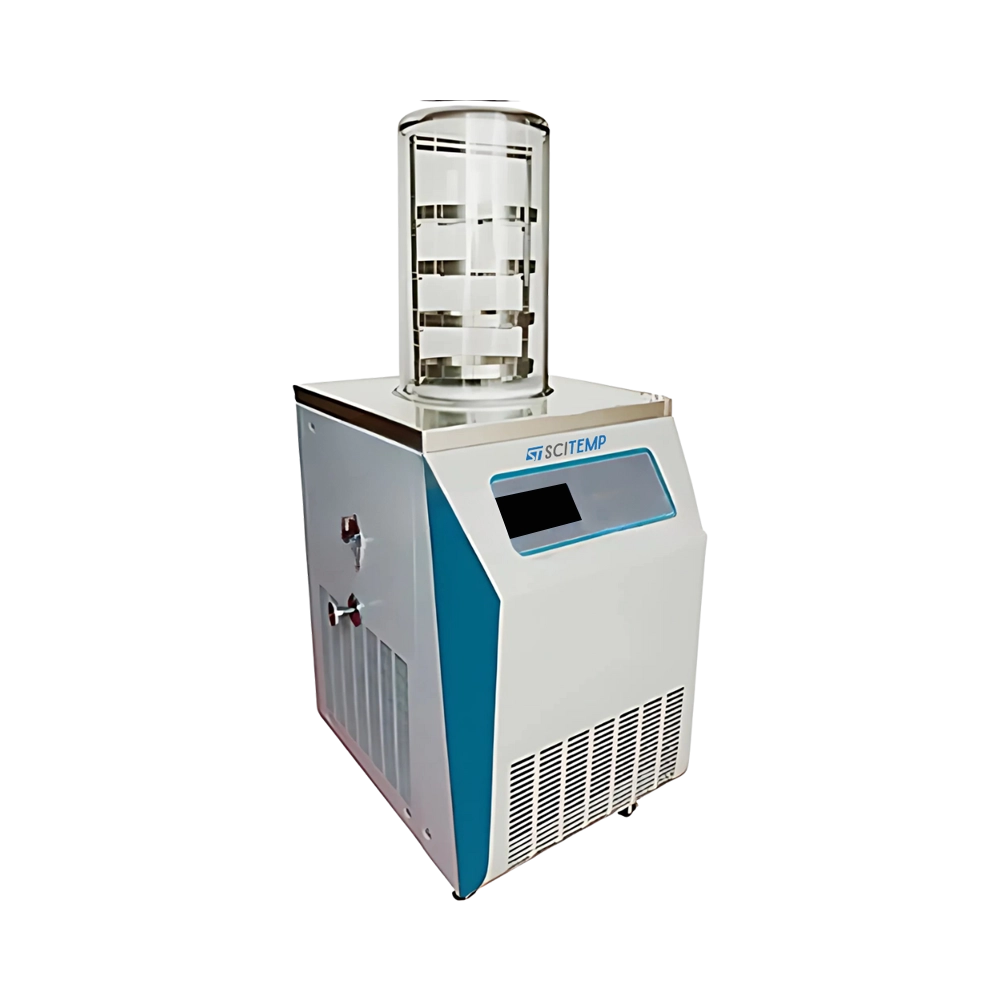

Standard Freeze Dryer SSFD-E14 offers a 0.12 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. Our standard freeze dryer is equipped with a USB port for exporting freeze-drying data, which can be easily opened and viewed in Excel format. Its condenser designed for uniform and efficient ice capture. With its compact structure, the unit ensures simple and convenient operation. It uses a CFC-free refrigerant and is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.12 ㎡ |
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ200 mm × 4/6 Layer |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1.2 Liter |
| Vial Capacity Φ 12mm | 820 pcs |
| Vial Capacity Φ 16mm | 460 pcs |
| Vial Capacity Φ 22mm | 244 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1070 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 100 Kg |
Standard Freeze Dryer SSFD-E14 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 18 L
Freeze drying area 0.18 ㎡
Freeze drying time 24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size C 200 mm
Extraction rate 1.8 L
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 2 L/S
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 10L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
The Scitemp Standard Freeze Dryer is equipped with a USB port that allows users to export freeze-drying data directly from the machine. This data can be conveniently opened in Excel format, making it easy to analyze and document important parameters like temperature, vacuum levels, and cycle times. This feature is especially useful for maintaining accurate records in laboratory or production settings.
The freeze dryer includes a condenser with an external coil design that ensures uniform and efficient ice capture. This helps in maintaining consistent freeze-drying conditions throughout the chamber, improving the quality and reliability of the drying process. The condenser also includes a pre-freezing function, making the process more efficient and reducing total cycle time.
Scitemp freeze dryers are built using high-quality stainless steel 304 for key components like trays and structural parts, ensuring excellent resistance to corrosion and long-lasting performance. The acrylic drying chamber allows users to easily monitor samples while also being safe and transparent. Together, these materials contribute to a durable, user-friendly design that meets industry safety standards.
The Scitemp freeze dryer is a versatile piece of equipment suitable for a wide range of applications. It is commonly used in medicine, pharmaceuticals, biological research, the chemical industry, and food production. Its ability to preserve sensitive samples by removing moisture without damaging their structure makes it valuable for both research and commercial production environments.
The dryer features a simple and compact design that makes it easy to operate, even for users with limited experience. The intuitive LCD touch screen control panel provides real-time display of operating parameters, and the inclusion of a control panel and clearly labelled functions make the system very accessible. Its compact footprint also makes it easy to fit into most laboratory or industrial spaces without requiring much room.
