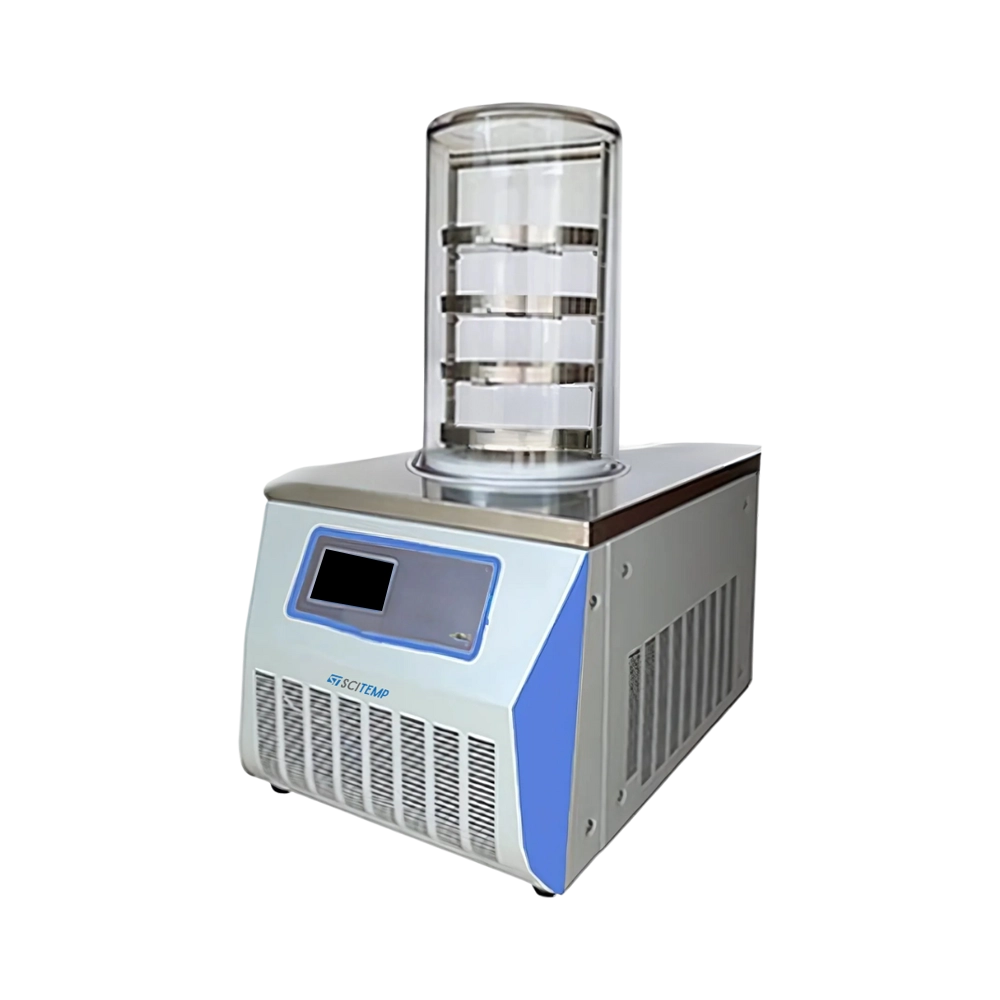

Standard Freeze Dryer SSFD-E12 provides a 0.18 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. It features a compact and easy-to-use design with an English-language control panel and condenser offers uniform and efficient ice capture. A stainless-steel air inlet valve ensures safety, is leak-proof, and resists corrosion. The system displays real-time curves, allowing easy monitoring throughout the process. Our standard freeze dryer is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.18 ㎡ |
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ200 mm × 4/6 Layer |
| Shelf Spacing | 50 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1.8 Liter |
| Vial Capacity Φ 12mm | 1230 pcs |
| Vial Capacity Φ 16mm | 690 pcs |
| Vial Capacity Φ 22mm | 366 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 970 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 70 Kg |
Standard Freeze Dryer SSFD-E12 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 10L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Type Standard
Freeze drying area 0.1 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 18 L
Freeze drying area 0.18 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Scitemp Standard Freeze Dryers are compact, easy to operate, and designed with features that support efficient freeze-drying of various materials. They are suitable for both small-scale laboratory uses and industrial applications. With reliable performance, user-friendly controls, and strong vacuum and cooling capabilities, they help preserve biological samples, pharmaceuticals, and food products while maintaining product integrity and stability.
The USB data output function allows users to export key freeze-drying data, such as temperature and vacuum records, which can be opened and analysed in Excel format. This is particularly useful for documentation, quality control, research tracking, and meeting regulatory standards. It ensures transparency and consistency in results across drying cycles.
Scitemp freeze dryers are built with stainless steel 304 components, including trays, drying shelves, and condenser coils. This material is highly resistant to corrosion, easy to clean, and long-lasting, making the dryers ideal for handling sensitive, sterile, or high-purity materials used in medical, chemical, and food applications.
Scitemp freeze dryers feature a condenser designed with external coils for pre-freezing and efficient heat exchange. This setup supports uniform and effective ice capture, which is critical for maintaining sample quality and ensuring complete sublimation during freeze-drying. It also improves overall process speed and reduces energy consumption.
Scitemp freeze dryers come with safety features such as a stainless-steel air inlet valve that prevents leaks and resists corrosion. The English-language control panel, real-time temperature and vacuum curve display, and CFC-free refrigerant system contribute to safe, efficient, and environmentally friendly operation. These features collectively ensure the equipment is easy to monitor and manage for a variety of applications.
