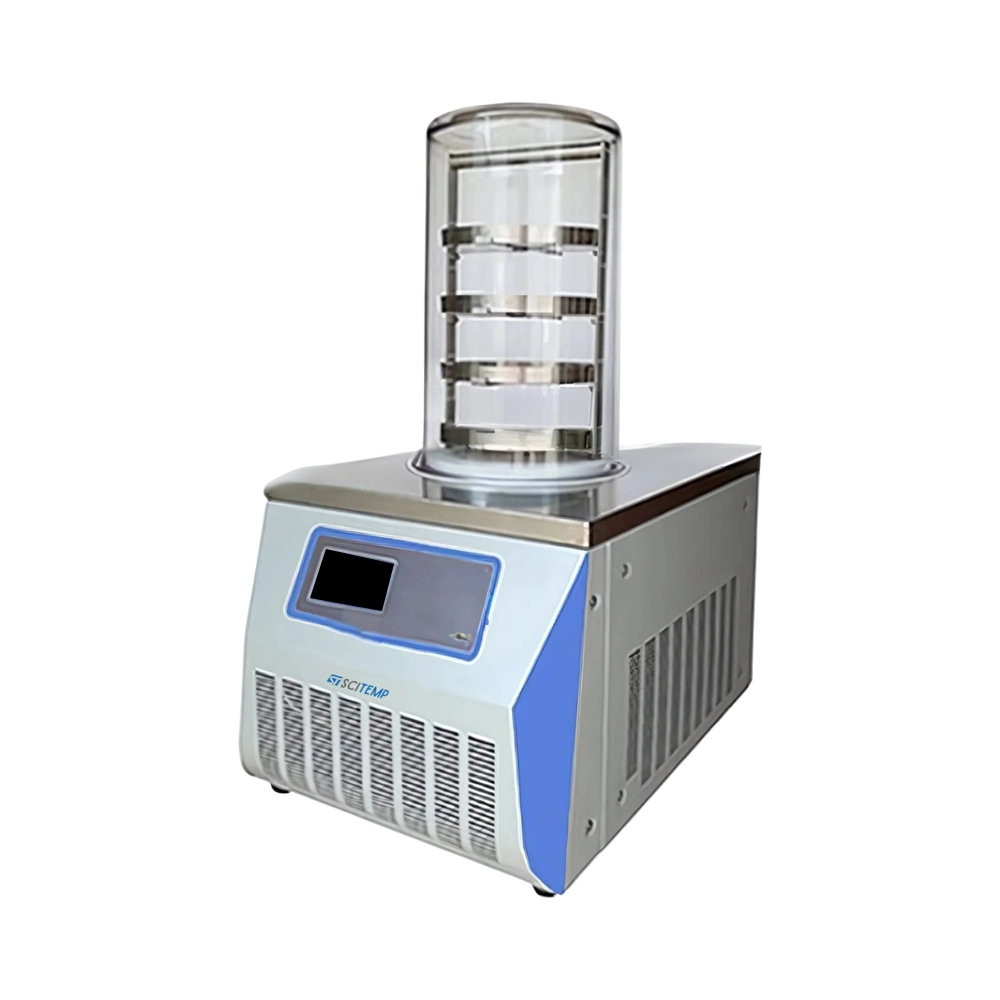

Standard Freeze Dryer SSFD-E10 features a 0.12 ㎡drying area with a condenser capacity of 3 to 4 kg per 24h. It has a uniform ice capture condenser and stainless steel 304 components for durability and corrosion resistance. Equipped with a high-speed vacuum pump and a leak-proof, anti-corrosive air inlet valve. Displays sample, condenser, and vacuum curves. Acrylic chamber allows easy sample viewing. Our standard freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.12 ㎡ |
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ200 mm × 4/6 Layer |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1.2 Liter |
| Vial Capacity Φ 12mm | 820 pcs |
| Vial Capacity Φ 16mm | 460 pcs |
| Vial Capacity Φ 22mm | 244 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 970 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 70 Kg |
Standard Freeze Dryer SSFD-E10 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 10L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size C 200 mm
Extraction rate 1.8 L
Standard Freeze dryers
Type Standard
Capacity 18 L
Freeze drying area 0.18 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Standard Freeze dryers
Type Standard
Capacity 12L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
The Scitemp Standard Freeze Dryer is designed for reliability, efficiency, and ease of use. It features a stainless steel 304 build for corrosion resistance and durability, a user-friendly LCD touchscreen for real-time monitoring, and a clear acrylic drying chamber for easy viewing of samples. With features like pre-freezing, USB data export, and uniform ice capture, it meets the needs of labs and industries working with sensitive biological or chemical materials.
This freeze dryer is equipped with a large external coil condenser that provides excellent ice capture and includes a built-in pre-freezing function, which helps preserve the quality of samples. The stainless-steel trays and shelves offer uniform temperature distribution, and the system maintains a vacuum level above 10 Pa using a high-speed vacuum pump. All these features work together to ensure stable and repeatable freeze-drying performance.
The Scitemp freeze dryer supports various sample types, including bulk liquids and vials of different sizes. It offers flexible tray options and optional manifold ports to connect flasks ranging from 50 ml to 1000 ml. With capacities for vials of 12 mm, 16 mm, and 22 mm diameter, it's ideal for labs handling different formulations in research, pharmaceuticals, or food applications.
Scitemp uses CFC-free refrigerants, making the system eco-friendly and compliant with environmental standards. The stainless-steel air inlet valve is leak-proof and corrosion-resistant, ensuring safe operation. The unit also operates quietly and efficiently, making it suitable for shared laboratory environments and long-term use without safety concerns.
The Scitemp freeze dryer is widely used across a range of industries, including medicine, pharmacy, biology research, the chemical industry, and food production. It is suitable for drying vaccines, biological samples, herbal extracts, chemical compounds, and food ingredients, making it a versatile tool for both research labs and small-scale production facilities.
