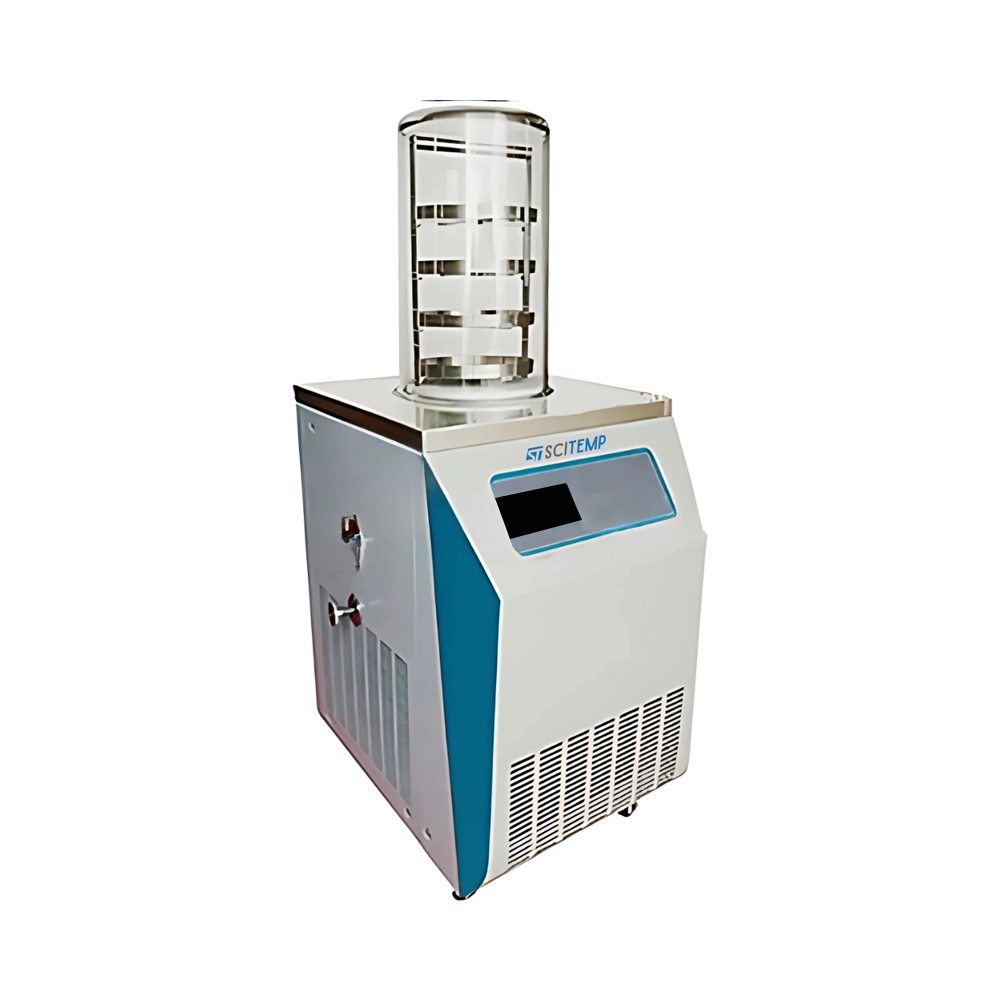

Standard Freeze Dryer SSFD-E16 offers a 0.18 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. Our standard freeze dryer features a clear acrylic chamber for safe and easy sample observation, a large-opening condenser with external coiling tubes and pre-freezing function, and a CFC-free refrigerant with a low-noise. Its colour LCD touchscreen displays real-time data including sample and condenser temperatures, vacuum level, and running time. It is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.18 ㎡ |
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ200 mm × 4/6 Layer |
| Shelf Spacing | 50 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1.8 Liter |
| Vial Capacity Φ 12mm | 1230 pcs |
| Vial Capacity Φ 16mm | 690 pcs |
| Vial Capacity Φ 22mm | 366 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1070 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 100 Kg |
Standard Freeze Dryer SSFD-E16 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 2 L/S
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 12L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.1 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Type Standard
Capacity 18 L
Freeze drying area 0.18 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
The Scitemp Standard Freeze Dryer series offers a range of features designed for efficient and user-friendly operation. These include a clear acrylic chamber for easy sample observation, a large-opening condenser with external coiling tubes and a pre-freezing function, and the use of CFC-free refrigerants with low-noise compressors. The colour LCD touchscreen displays real-time data such as sample and condenser temperatures, vacuum levels, and running time. Additionally, these freeze dryers are equipped with stainless steel air inlet valves, USB ports for data export, and high-speed vacuum pumps for optimal performance.
Scitemp Standard Freeze Dryers are versatile and find applications across various industries. They are widely used in medicine, pharmacy, biology research, chemical industry, and food production. These freeze dryers are ideal for preserving sensitive materials like enzymes, proteins, tissues, and pharmaceuticals, as well as for food preservation and other research applications.
The pre-freezing function in Scitemp Standard Freeze Dryers allows samples to be frozen within the unit before the drying process begins. This feature ensures uniform freezing, which is crucial for maintaining the structural integrity of the samples and achieving consistent drying results. By integrating pre-freezing, the process becomes more streamlined, reducing the need for separate freezing equipment and minimizing sample handling.
The USB data export feature enables users to easily transfer freeze-drying data from the unit to a computer. This functionality allows for convenient monitoring, analysis, and record-keeping of the freeze-drying process. By exporting data in formats compatible with software like Excel, users can track parameters such as temperature and vacuum levels over time, facilitating process optimization and compliance with documentation requirements.
The condenser in Scitemp Standard Freeze Dryers is designed with a large opening and external coiling tubes, which facilitate efficient ice capture and removal of moisture from the samples. This design ensures uniform and effective condensation, contributing to a more efficient freeze-drying cycle. Additionally, the condenser's pre-freezing capability aids in preparing the system for the drying process, further enhancing overall performance.
