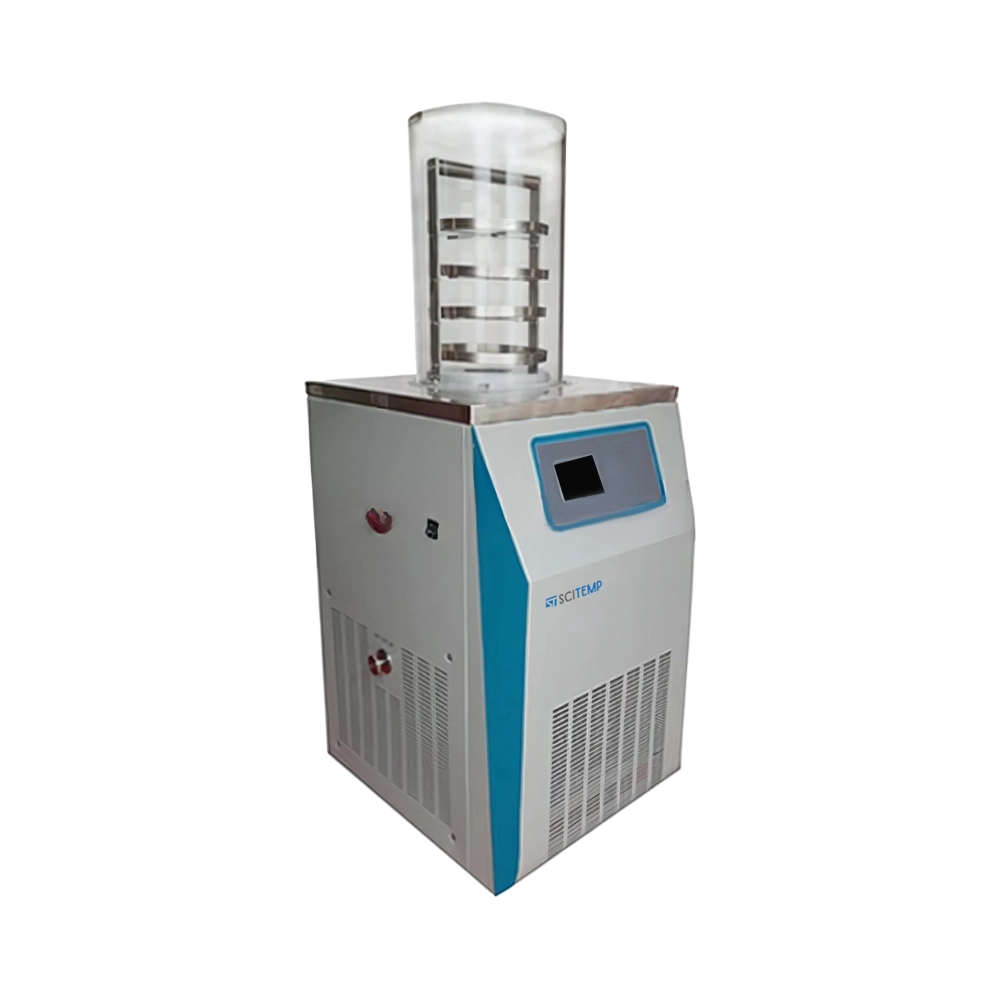

Standard Freeze Dryer SSFD-E20 offers a 0.27 ㎡ drying area with a condenser capacity of 6 kg per 24h. It features a stainless-steel air inlet valve which is leak-proof, anti-corrosive, and safe. The high-speed vacuum pump ensures a strong final vacuum. The acrylic drying chamber is safe and offers clear sample visibility. The colour LCD screen displays running time, temperatures, and vacuum level, and saves data automatically. Our standard freeze dryer used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.27 ㎡ |
| Condenser Temperature | -50 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ240 mm × 4/6 Layer |
| Shelf Spacing | 50 mm |
| Bulk Liquid Capacity (10 mm thickness) | 2.7 Liter |
| Vial Capacity Φ 12mm | 1830 pcs |
| Vial Capacity Φ 16mm | 1020 pcs |
| Vial Capacity Φ 22mm | 522 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 4 L/S, 14.4 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1400 W |
| Dimension | 535 × 540 × (970 + 430) mm |
| Weight | 155 Kg |
Standard Freeze Dryer SSFD-E20 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 18 L
Freeze drying area 0.18 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 12L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 2 L/S
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size C 200 mm
Extraction rate 1.8 L
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 10L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Scitemp Standard Freeze Dryers are designed with features used for both laboratory and industrial needs. They incorporate CFC-free refrigerants and international brand compressors, ensuring environmental friendliness, low noise, and high efficiency. The inclusion of a colour LCD touch screen allows users to monitor running time, sample temperature, condenser temperature, and vacuum degree, with data saved automatically for analysis. The stainless steel 304 construction of condensers, trays, drying shelves, and pre-freezing shelves provides durability and resistance to corrosion, making them reliable for various applications.
User convenience and safety is there in the design of Scitemp Standard Freeze Dryers. The compact structure ensures easy placement and operation in limited spaces. An acrylic drying chamber offers clear visibility of samples during the freeze-drying process, allowing for real-time monitoring. The control panel displays information in English, making it user-friendly. Additionally, the stainless-steel air inlet valve is designed to be safe, anti-corrosive, and leak-proof, ensuring the integrity of the drying environment.
Efficiency and uniformity in freeze-drying are achieved through several design elements in Scitemp Standard Freeze Dryers. The big opening condenser with external coiling tubes facilitates a pre-freezing function, which aids in uniform ice capture. The system displays curves for sample temperature, condenser temperature, and vacuum, allowing users to monitor and adjust parameters for optimal drying. The high-speed vacuum pump ensures a strong final vacuum, contributing to effective and consistent drying results.
Scitemp Standard Freeze Dryers are versatile and widely used in various fields. They are commonly employed in medicine and pharmacy for preserving biological samples, vaccines, and pharmaceuticals. In biology research, they assist in the long-term storage of tissues, enzymes, and other sensitive materials. The chemical industry utilizes them for drying chemical compounds without altering their structure. Additionally, the food production sector uses these freeze dryers to preserve food products by removing moisture while maintaining nutritional value.
The data management system in Scitemp Standard Freeze Dryers is designed for ease of use and comprehensive monitoring. The colour LCD touch screen displays critical parameters such as running time, sample temperature, condenser temperature, and vacuum degree. This information is automatically saved and can be exported via a USB port, allowing users to open and view freeze-drying data in Excel format. This feature facilitates detailed analysis, record-keeping, and process optimization, enhancing the overall efficiency and reliability of the freeze-drying process.
