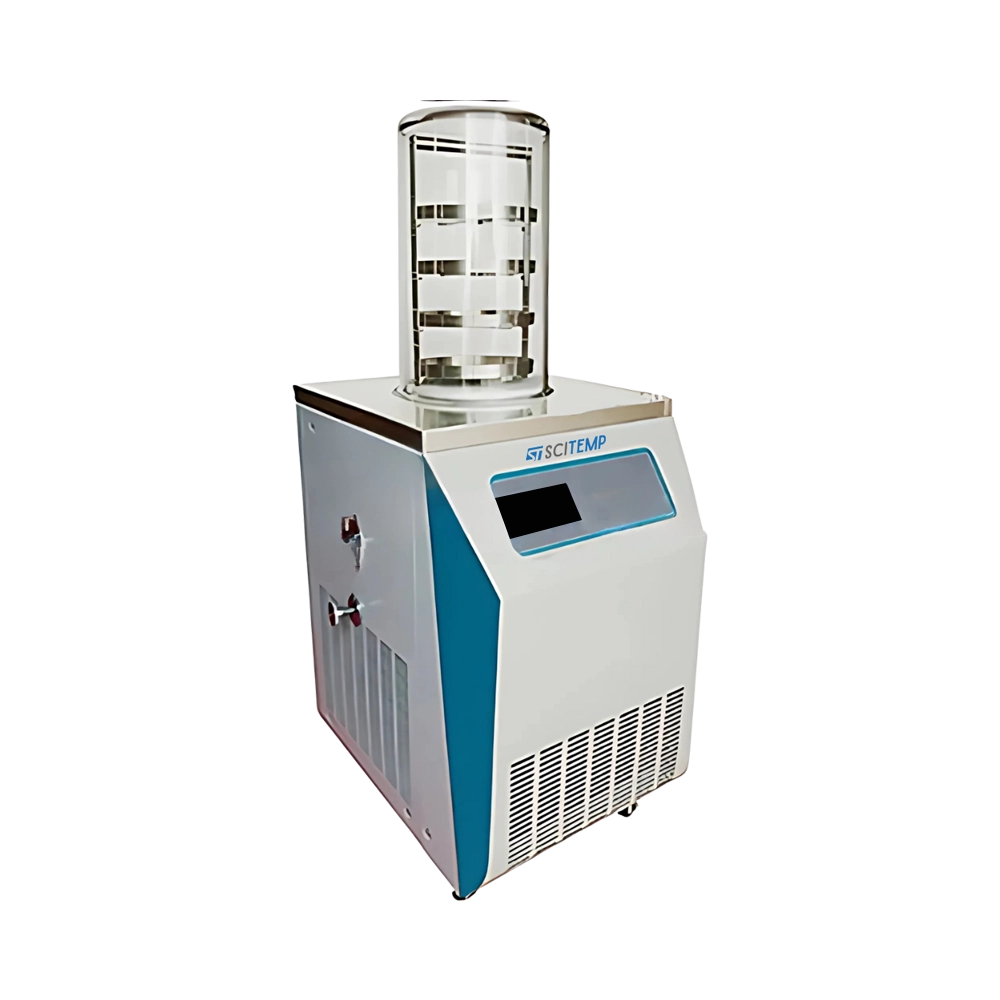

Standard Freeze Dryer SSFD-E17 provides a 0.18 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. It is designed for efficient freeze-drying and has a condenser that ensures uniform ice capture, a high-speed vacuum pump for optimal vacuum levels, and a stainless-steel air inlet valve for safety and corrosion resistance. Additionally, the built-in USB port allows for easy export data, which can be opened in excel format. Our standard freeze dryer is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.18 ㎡ |
| Condenser Temperature | -80 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ200 mm × 4/6 Layer |
| Shelf Spacing | 50 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1.8 Liter |
| Vial Capacity Φ 12mm | 1230 pcs |
| Vial Capacity Φ 16mm | 690 pcs |
| Vial Capacity Φ 22mm | 366 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1070 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 100 Kg |
Standard Freeze Dryer SSFD-E17 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size C 200 mm
Extraction rate 1.8 L
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 10L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Type Standard
Freeze drying area 0.1 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 2 L/S
Standard Freeze dryers
Type Standard
Capacity 12L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 18 L
Freeze drying area 0.18 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Scitemp Standard Freeze Dryers are engineered to optimize the freeze-drying process through several advanced features. They are equipped with condensers that ensure uniform ice capture, which is crucial for consistent sublimation and product quality. The high-speed vacuum pumps achieve optimal vacuum levels swiftly, reducing drying times and preserving sample integrity. Additionally, the stainless-steel air inlet valves are designed for safety, corrosion resistance, and leak prevention, ensuring long-term reliability and maintenance ease.
The built-in USB port in Scitemp Standard Freeze Dryers allows users to export freeze-drying data conveniently. This feature enables the data to be opened and analysed in Excel format, facilitating easy monitoring, record-keeping, and analysis of the freeze-drying process. Such data management is essential for quality control, process optimization, and compliance with documentation requirements in various industries.
Scitemp Standard Freeze Dryers are versatile and find applications across multiple industries. In the pharmaceutical and biotechnology sectors, they are used for preserving vaccines, biologics, and other sensitive compounds. The food industry utilizes them to extend shelf life while maintaining nutritional value. Additionally, they are employed in chemical research and biological studies where sample preservation is critical.
User convenience is a focal point in the design of Scitemp Standard Freeze Dryers. They feature clear acrylic drying chambers that allow safe and easy observation of samples during the freeze-drying process. The colour LCD touchscreens display real-time data, including sample and condenser temperatures, vacuum levels, and running time, providing users with comprehensive process insights. The compact structure of the units ensures they occupy minimal space while offering simple and convenient operation.
Scitemp Standard Freeze Dryers are designed with environmental considerations in mind. They utilize CFC-free refrigerants, aligning with global efforts to reduce ozone-depleting substances. The incorporation of international brand compressors known for low noise and high efficiency contributes to energy conservation and a quieter working environment. These features collectively ensure that the freeze dryers are both environmentally friendly and cost-effective to operate.
