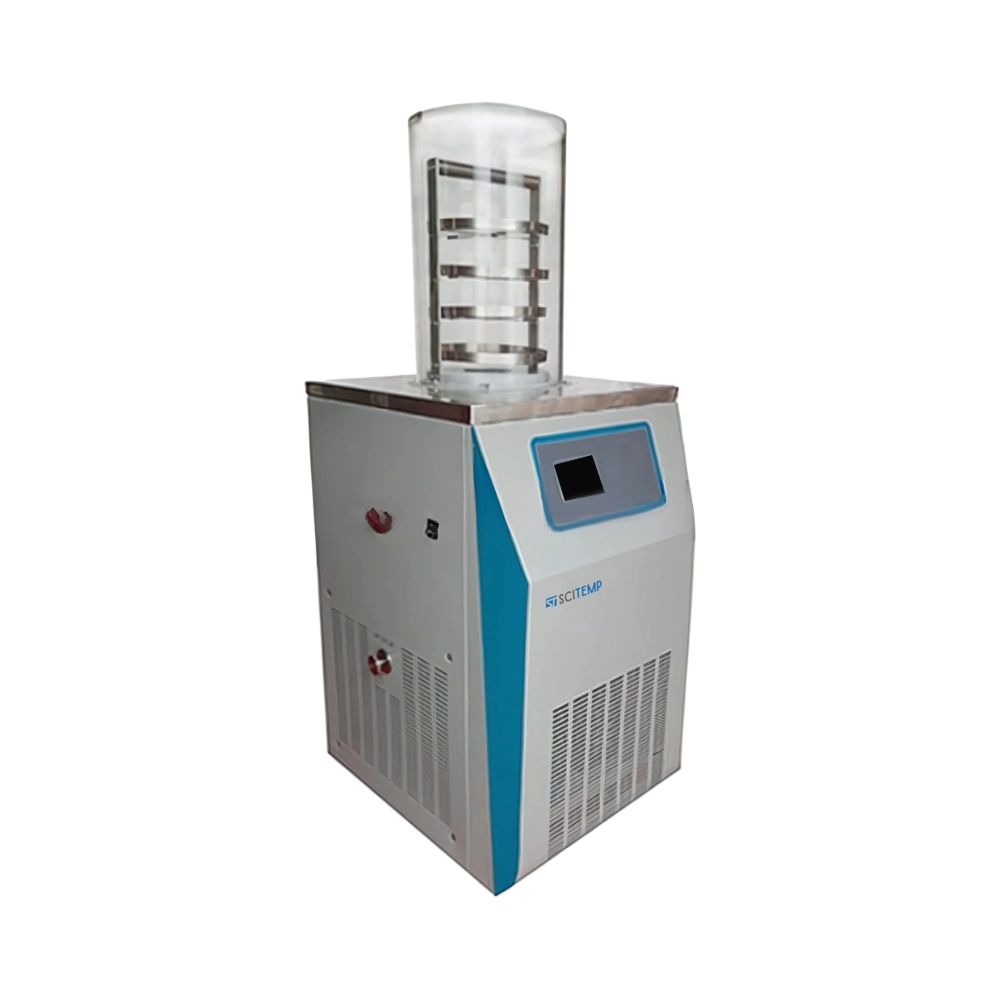

Standard Freeze Dryer SSFD-E21 provides a 0.27 ㎡ drying area with a condenser capacity of 6 kg per 24h. Our standard freeze dryer features a big-opening condenser with external coiling tubes and a pre-freezing function. It displays sample temperature, condenser temperature, and vacuum curves for easy monitoring. The compact structure allows convenient operation, and the control panel is displayed in English. It is used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.27 ㎡ |
| Condenser Temperature | -80 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ240 mm × 4/6 Layer |
| Shelf Spacing | 50 mm |
| Bulk Liquid Capacity (10 mm thickness) | 2.7 Liter |
| Vial Capacity Φ 12mm | 1830 pcs |
| Vial Capacity Φ 16mm | 1020 pcs |
| Vial Capacity Φ 22mm | 522 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 4 L/S, 14.4 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1400 W |
| Dimension | 535 × 540 × (970 + 430) mm |
| Weight | 155 Kg |
Standard Freeze Dryer SSFD-E21 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 2 L/S
Standard Freeze dryers
Type Standard
Freeze drying area 0.1 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Scitemp Standard Freeze Dryers are designed for efficient performance in various fields such as medicine, pharmacy, biology research, chemical industry, and food production. They help preserve sensitive samples by removing moisture at low temperatures, preventing structural and chemical degradation. Features like shelf drying, accurate temperature control, and strong vacuum capability make them ideal for laboratories and production setups requiring high-quality drying results.
Scitemp Standard Freeze Dryers use a big-opening condenser with external coiling tubes and a pre-freezing function. This setup ensures efficient and uniform ice capture, which enhances the freeze-drying process by maintaining stable low temperatures and reducing drying time. It allows for effective water vapor collection, preventing reabsorption into the sample.
These freeze dryers are made with high-quality materials for long-lasting use and safety. The drying chamber is made from clear acrylic for easy viewing, while the air inlet valve is constructed from stainless steel, making it leak-proof, anti-corrosive, and safe for handling samples. Stainless steel shelves and trays also offer excellent corrosion resistance.
Yes, they offer great flexibility. The systems support different tray sizes and layer configurations. Optional manifolds and flasks (ranging from 50 ml to 1000 ml) can be attached to suit different sample types and volumes. This makes them adaptable for both bulk liquid drying and vial-based freeze-drying across a range of applications.
Scitemp freeze dryers come with an easy-to-use control panel displayed in English. The colour LCD touch screen shows critical parameters like sample and condenser temperatures, vacuum degree, and running time. It also saves data automatically, and a USB port is included for exporting data, making operation and monitoring simple even for first-time users.
