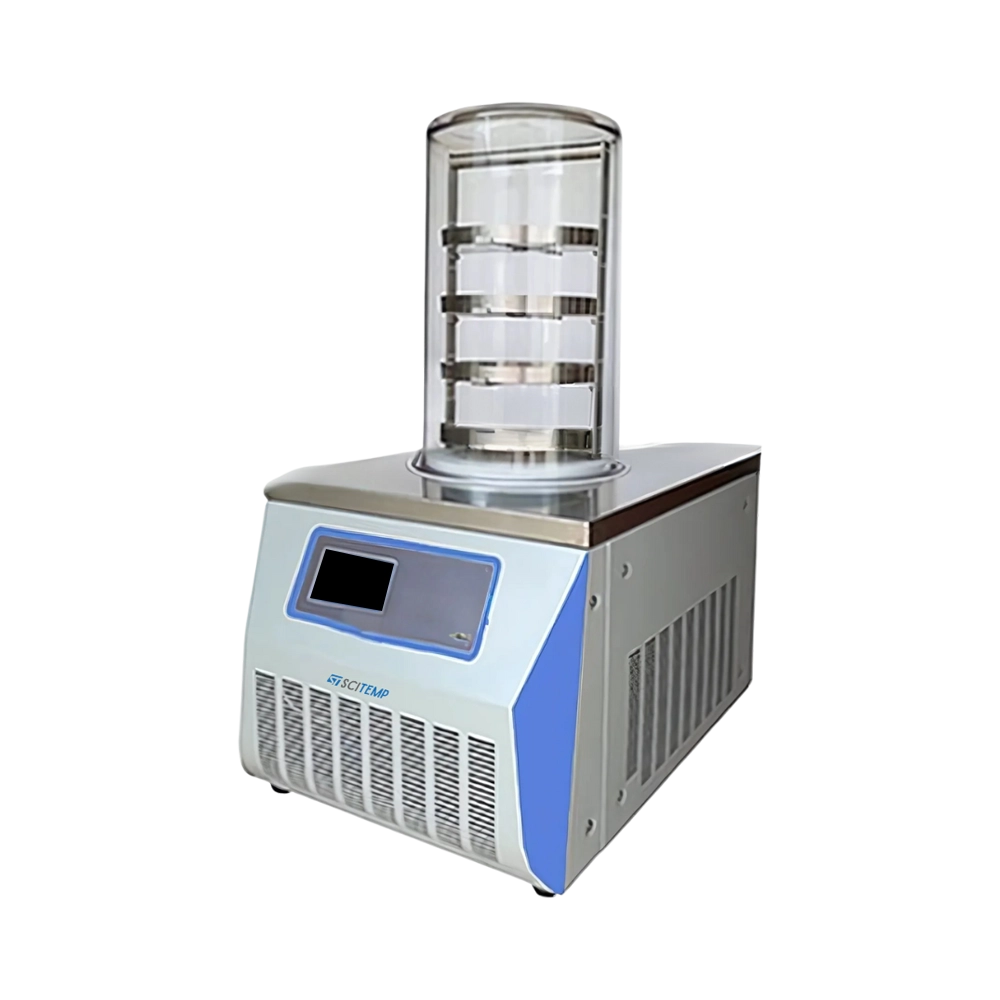

Standard Freeze Dryer SSFD-E11 offers a 0.12 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. Our standard freeze dryer features a colour LCD touchscreen that shows running time, sample, condenser temperatures, and vacuum levels. It has large condenser opening with external coiling tubes for pre-freezing. It uses a CFC-free refrigerant, a compressor ensuring low noise and high efficiency. Easy to operate with a user-friendly design. It used in medicine, pharmacy, biology research, chemical industry and food production.
| Drying Area | 0.12 ㎡ |
| Condenser Temperature | -80 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ200 mm × 4/6 Layer |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1.2 Liter |
| Vial Capacity Φ 12mm | 820 pcs |
| Vial Capacity Φ 16mm | 460 pcs |
| Vial Capacity Φ 22mm | 244 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 970 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 70 Kg |
Standard Freeze Dryer SSFD-E11 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Type Standard
Capacity 10L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 2 L/S
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 12L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.1 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Scitemp standard freeze dryers are designed with ease of use and efficiency. They feature a colour LCD touchscreen display that shows real-time data such as running time, sample temperature, condenser temperature, and vacuum degree, all in an easy-to-read format. The data is saved automatically and can be exported via a USB port in Excel format. Their compact structure makes them space-saving, and the intuitive control panel ensures easy operation. In addition, they use CFC-free refrigerants and internationally known compressors, which provide low noise, energy efficiency, and high performance, making them suitable for both laboratory and industrial settings.
Scitemp freeze dryers are equipped with a big-opening condenser that includes external coiling tubes. This design allows for effective pre-freezing, which helps to preserve sample integrity and speed up the drying process. The efficient condenser, with a capacity of 3 to 4 kg per 24 hours, can handle a significant amount of vaporized moisture, ensuring stable and continuous operation. This condenser design is especially useful in applications requiring consistent performance over longer cycles.
Scitemp freeze dryers come with built-in data logging and export capabilities. The LCD touchscreen not only displays critical parameters during operation but also automatically records freeze-drying data. This information can be easily exported via a USB port and opened in Excel format for analysis, reporting, or archiving. This feature is especially valuable for quality control, research documentation, and compliance with industry standards in pharmaceuticals, food processing, and scientific research.
Scitemp freeze dryers are versatile and widely used across several fields, including medicine, pharmaceuticals, biological research, the chemical industry, and food production. Their ability to gently remove moisture while preserving the structure and stability of sensitive samples makes them ideal for producing long-lasting biological samples, drugs, and food ingredients. Their consistent vacuum performance and low operating temperatures also make them suitable for delicate or temperature-sensitive materials.
Scitemp freeze dryers are built with high-quality, durable materials such as stainless steel 304, which is known for its corrosion resistance and hygienic properties. The drying chamber is often made of transparent acrylic, allowing for clear visibility of the samples during the process. These construction features ensure long-lasting performance, easy cleaning, and compliance with safety and hygiene standards—particularly important in food and pharmaceutical applications.
