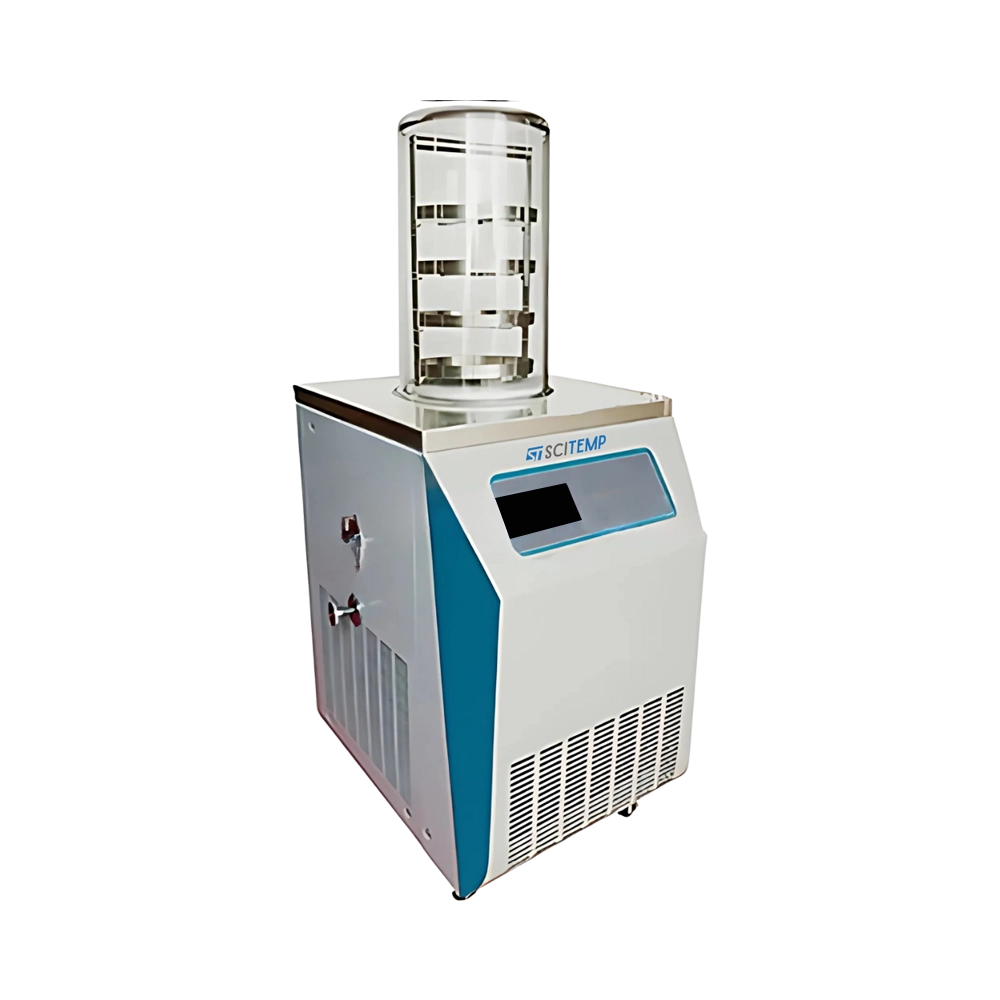

Standard Freeze Dryer SSFD-E15 features a 0.12 ㎡ drying area with a condenser capacity of 3 to 4 kg per 24h. It displays vacuum in Pa and shows real-time curves for sample, condenser temperatures, and vacuum. Key components like the condenser, trays, drying shelf, and pre-freezing shelf are made of anti-corrosion stainless steel 304. It includes a high-speed vacuum pump to ensure a strong and stable vacuum. Our standard freeze dryer is used in biology research, chemical industry, medicine, pharmacy and food production.
| Drying Area | 0.12 ㎡ |
| Condenser Temperature | -80 ℃ |
| Vacuum Degree | Above 10 Pa |
| Condenser Capacity | 3 to 4 kg/24h |
| Sample Tray | Φ200 mm × 4/6 Layer |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity (10 mm thickness) | 1.2 Liter |
| Vial Capacity Φ 12mm | 820 pcs |
| Vial Capacity Φ 16mm | 460 pcs |
| Vial Capacity Φ 22mm | 244 pcs |
| Optional Manifold | 8 Ports |
| Optional Flask | 1000 ml, 500 ml, 250 ml,100 ml, 50 ml |
| Vacuum Pump Flow Rate | 2L/S, 7.2 m3/h |
| Voltage | 220V, 50Hz 110V/120V, 60Hz |
| Power Consumption | 1070 W |
| Dimension | 565 × 420 × (360 + 430) mm |
| Weight | 100 Kg |
Standard Freeze Dryer SSFD-E15 is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc.
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Type Standard
Freeze drying area 0.1 ㎡
Material Tray Size Φ180 mm
Extraction rate 2 L/S
Standard Freeze dryers
Type Standard
Capacity 12L
Freeze drying area 0.12 ㎡
Freeze drying time 24h
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.27 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.12 ㎡
Condenser Temperature -50 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.12 ㎡
Material Tray Size Φ200 mm
Extraction rate 1.2 L
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size C 200 mm
Extraction rate 1.8 L
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Drying Area 0.18 ㎡
Condenser Temperature -80 ℃
Vacuum Degree Above 10 Pa
Condenser Capacity 3 to 4 kg/24h
Standard Freeze dryers
Type Standard
Capacity 18 L
Freeze drying area 0.18 ㎡
Freeze drying time 24h
Standard Freeze dryers
Type Standard
Freeze drying area 0.18 ㎡
Material Tray Size Φ240 mm
Extraction rate 4 L/S
Scitemp Standard Freeze Dryers are designed with user-friendly features to optimize performance. They include a USB port for exporting freeze-drying data, which can be easily opened and viewed in Excel format. The condenser is designed for uniform and efficient ice capture, ensuring consistent drying results. With a compact structure, these units offer simple and convenient operation. Additionally, they use CFC-free refrigerants and are equipped with international brand compressors that operate quietly and efficiently.
Scitemp Standard Freeze Dryers feature a vacuum display in Pascal (Pa), providing precise monitoring of the vacuum levels during the freeze-drying process. This accurate measurement is crucial for ensuring optimal drying conditions. The system also displays real-time curves for sample temperature, condenser temperature, and vacuum, allowing users to monitor and adjust parameters as needed for consistent and reliable results.
The key components of Scitemp Standard Freeze Dryers, including the condenser, trays, drying shelf, and pre-freezing shelf, are made of stainless steel 304. This material is known for its anti-corrosion properties, ensuring long-term durability and safety. The stainless-steel construction also facilitates easy cleaning and maintenance, which is essential in laboratory and industrial settings.
Scitemp Standard Freeze Dryers are widely used across various industries, including medicine, pharmacy, biological research, chemical industry, and food production. They are ideal for applications such as preserving biological samples, pharmaceuticals, and food products by removing moisture content while maintaining structural integrity and activity. The freeze-drying process extends the shelf life of products and is essential in research and production environments.
The Scitemp Standard Freeze Dryer features a drying area of 0.12 ? and a condenser capacity of 3 to 4 kg per 24 hours. It operates at a condenser temperature of -80 ? and maintains a vacuum degree above 10 Pa. The unit includes sample trays measuring ?200 mm with 4 to 6 layers and a shelf spacing of 70 mm. It can accommodate bulk liquid capacities of 1.2 Liters and various vial capacities. The vacuum pump has a flow rate of 2L/S (7.2 m³/h), and the unit operates on 220V, 50Hz or 110V/120V, 60Hz with a power consumption of 1070 W. Its compact dimensions and weight of 100 kg make it suitable for laboratory and industrial applications.
