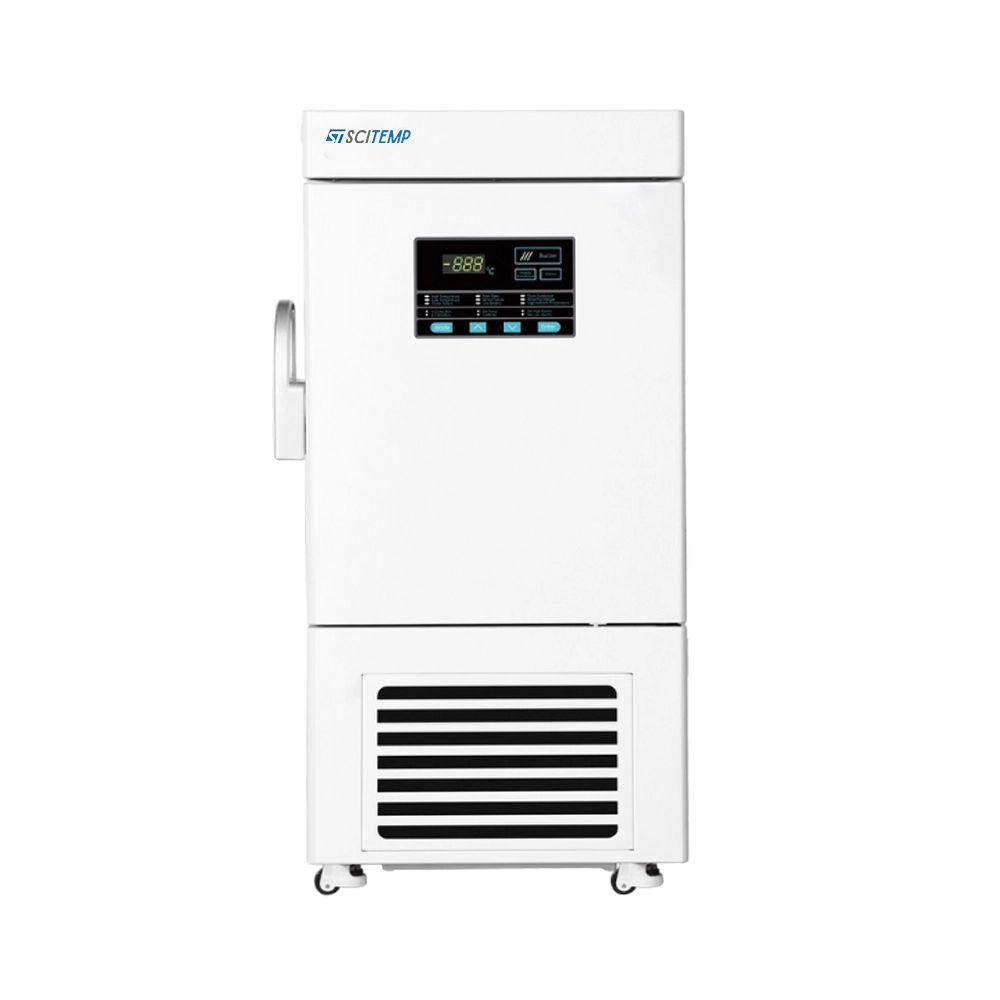

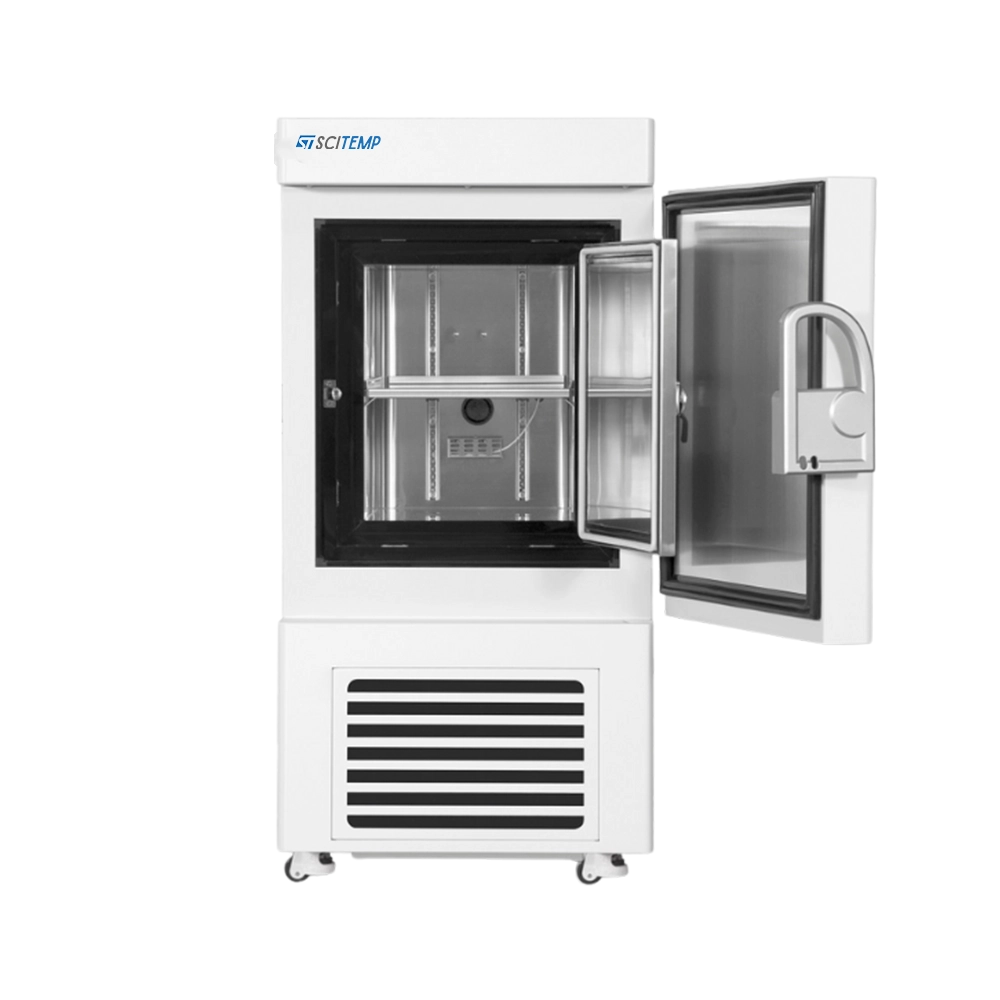

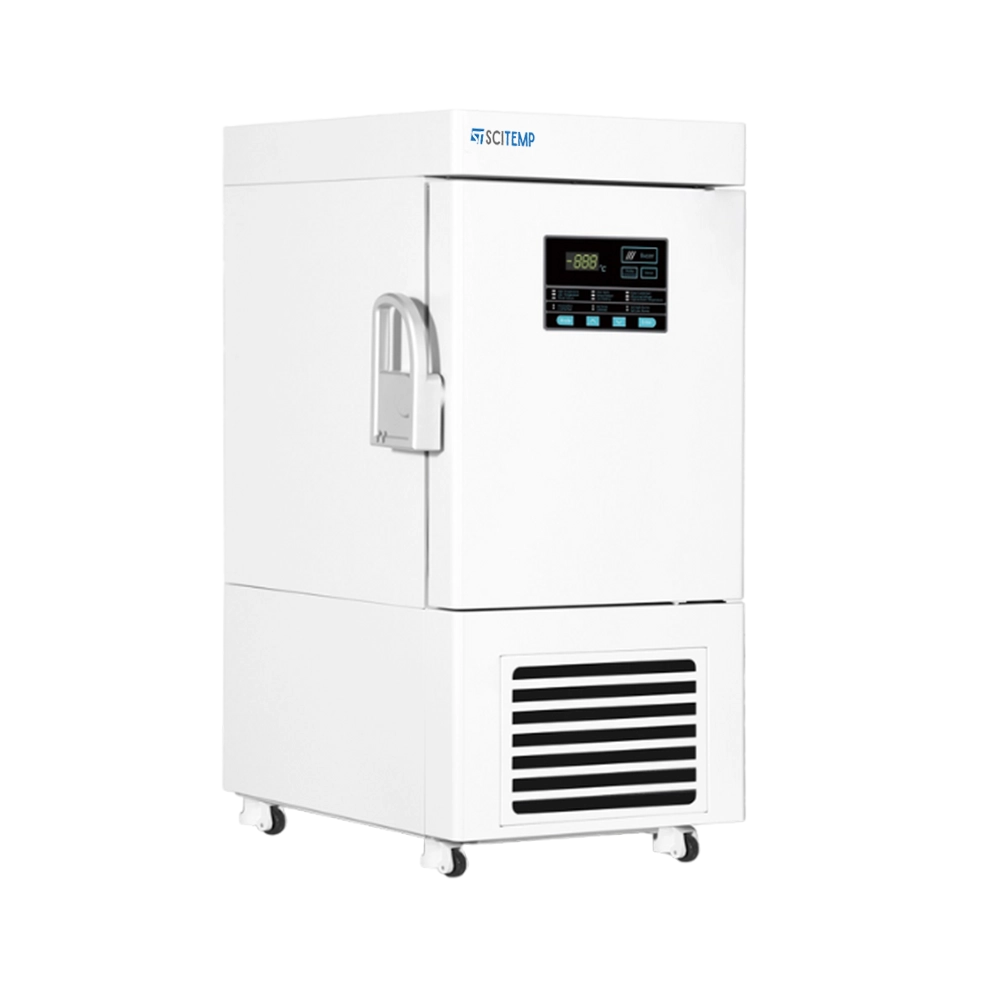

-86 °C ULT Upright Freezer STUF-A16

-86 °C ULT Upright Freezer STUF-A16 offers 58L capacity, it efficiently stores various materials while maintaining temperatures from -40°C to -86°C through a microprocessor. It uses refrigerant R4001, a mixed gas formulation for efficient cooling performance. The stainless-steel interior of our -86 °C ULT upright freezer ensures durability. The ergonomic handle is designed for comfortable and efficient use, reducing strain during prolonged operation.

Capacity: 188 L 338 L 340 L 408 L 58 L 588 L 728 L 838 L

Capacity 58 L
Temperature Range -40˚C to -86˚C
Ambient Temperature 10 ˚C to 32˚C
Cooling Method Direct cooling
Defrost Mode Manual
Refrigerant R4001(mixed gas)
System Auto-cascade
Sensor PTC 100
Temperature Controller Microprocessor
Display 7” LCD touch screen
Noise 50 dB
Compressor 1
Internal Material Stainless steel
External Material Color sprayed steel
Insulation PURF
Alarms High/low temperature
Power failure
Abnormal voltage
Sensor error
Filter screen check
Thermostat failure
Low battery
Condenser clean
High ambient temperature
Door ajar
72h Power failure alarm
Racks 2(6×2)
Boxes (2 inch) 24
Samples (2 ml) 2400
Current 3.18 A
Power 442 W
Power Consumption 6.09 kWh/24h
Power Supply 220V50/60 Hz
Internal Dimension 330 × 453 × 410 mm
External Dimension 635 × 757 × 1212 mm
Packaging Dimension 730 × 860 × 1420 mm
Net Weight 112 Kg
Gross Weight 146 Kg
  • • Audible and visual alarms
  • • LED display
  • • Low noise operation
  • • Quick-release filters
  • • Built-in lock
  • • Ecofriendly
  • • Energy saving

  • Castors × 4

    25mm Access port × 1

    USB port × 1

    Remote alarm port × 1

  • Data logger

    Chart recorder

    CO2 backup system

    LN2 backup system



-86 °C ULT Upright Freezer STUF-A16 is widely used in life sciences, biobanking, blood banks, pharmaceuticals, clinical settings, and vaccine production.
